Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing

Large Image : Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MRBEST-Pouch Cell
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing

Description

Name:	Pouch Cell Assembly	Type:	Polymer/Pouch Cell
Application:	Lithium, Sodium And Solid-state Battery	After-sales Service Provided:	Video Technical Support, Online Support
Size:	Can Be Customized	Direct Factory:	With Competitive Price
Highlight:	Polymer Pouch Cell Assembly Line , Pouch Cell Assembly Customized

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing 0

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing 1

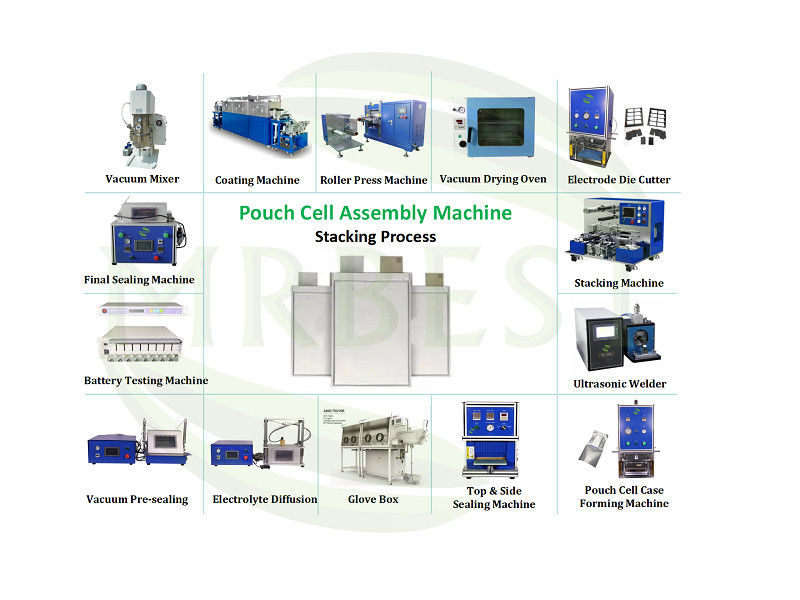

MRBEST Pouch Cell Assembly Line for Lithium Ion Battery Manufacturing

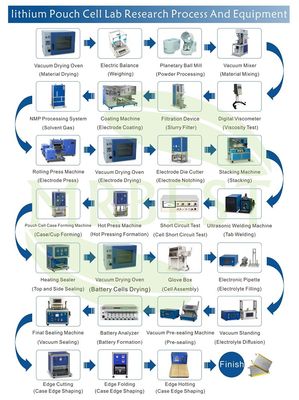

The below listing is step-by-step guide of how to produce a Li-ion Pouch Cell using MRBEST equipment & materials.

Lithium ion Pouch Cell Assembly for Pouch Battery indicated has various sizes and specifications, therefore can be customized to meet your requirements.

PROCESS 1: Electrode Sheet Preparation

Process Flow	Recommend Equipment
1. Furnace to sinter raw active material (Cathode & Anode)
2. Milling Machine to mill material to smaller particles
3. Mixer to mix active, conductive and binder material into paste within vacuum
4. Coater to coat paste onto current collector; attach heater to dry
5. Rolling Press (Calendar) to roll the electrode to proper thickness
Choose method	Stacking OR Winding
All consumables & materials are available e.g. Al Film, Metallic Strip Terminal, Tabs

PROCESS 2: Cell Assembly

Procedure	Process Flow	Recommend Equipment
Stacking	6: Electrode Die Machine to cut out electrode with lead
Stacking	7: Stacking Machine to stack layers in form of Anode + Separator + Cathode + Separator +…
Winding	6: Slitting Machine to slit electrode sheet to strip
Winding	7: Winding Machine to wind strips layers in form of Anode + Separator + Cathode + Separator +
	8: Ultrasonic Welding Machine to first weld current collector and then tab together
	9: Short-circuit Detector to test if the cell has a short-circuit
	10: Vacuum Oven to dry the cell if no short-circuit

PROCESS 3: Case Formation & Sealing

Process Flow	Recommend Equipment
11: Cup Forming Machine to punch cup- shape and gas receiver on Aluminium lamination sheet and then place cell into the cup
12: Top & Side Heat Sealing machine to seal the top and shorter side after double-up
Glove Box:
13: Electrolyte Filling System to fill electrolyte in vacuum/glove box
14: Electrolyte Diffusion and Degassing Chamber for De-gas by removing air from the electrolyte
15: Vacuum Pre-Sealing Machine to seal longer side (the side with gas receiver) under vacuum after electrolyte is filled
16. Battery Analyzer to Charge/Discharge the cell for battery formation and drive the unnecessary gas caused by electrode chemical reaction into gas receiver.
17: Cutting off the gas receiver and Vacuum Sealing Machine for final sealing on the cutting edge under vacuum conditions within glove box

PROCESS 4: Battery Testing

19: Battery Analyzer to test the pouch cell’s performance
20: Battery Impedance Tester to measure battery’s internal resistance

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing 25

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing 26

Polymer Pouch Cell Assembly Line Customized For Lithium Ion Battery Manufacturing 27
