3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing
3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing

Large Image :  3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-YF200-JZ
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing

Description
Product Name: Pouch Cell 3-In-1 Hot Sealer Application: For Battery Research
Suitable Battery: Pouch Cell Sealing Width: 5±0.4mm (can Be Customized)
Sealing Length: 200mm（200mm~400mm Can Be Customized) Side Sealing Thickness: 60 - 300um
Thickness Of Top Tab Edge Sealing: 200 - 700um Heat Sealing Temperature: RT～250℃ Adjustable
Highlight:

3 In 1 Pouch Cell Hot Sealer

,

Pouch Cell Hot Sealer Vacuum Standing

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 0

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 1

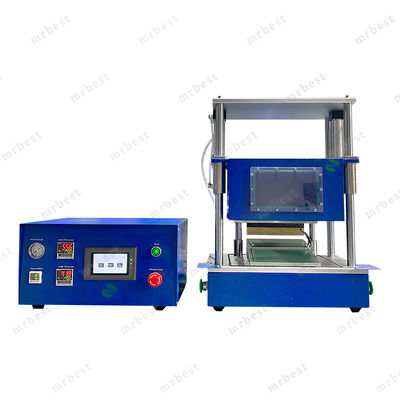

3-in-1 Hot Sealer for Top/Side Edge Sealing & Vacuum Sealing and Vacuum Standing for Pouch Cell R&D



Model: MR-YF200-JZ



MR-YF200-JZ is a 3-in-1 compact hot sealer.

· the preliminary sealing top and side of the pouch cell before electrolyte injection (MR-SFZ200)

· the vacuum sealing for the pouch case after injection of electrolyte in the glove box (MR-YF200)

· the vacuum standing for the electrolyte diffusion and degassing (MR-JZ300) (Vacuum time adjustable)

It is designed for Li-S pouch cell preparation in glove-box for space-saving.



Specifications



Model Top/Side & Vacuum Standing & Vacuum Sealing MR-YF200-JZ
Power Supply 110-240 V, Single Phase 50/60Hz
Max. Power 1KW
Compress Air 0.5-0.8Mpa
Chamber Body 12mm thick Aluminum case with observation window
Vacuum Level Vacuum condition remains stable,
vacuum degree and vacuum circulation times can be set independently
Vacuum mode (once or twice) can be selected
Easy program setting for specific vacuum condition
Vacuum degree can up to -90Kpa～0, with good sealing,
can guarantee 1 minute air leakage is not more than 0.01 MPa
Vacuum Condition Hold Time 0 - 9999 sec, adjustable
Sealing Advantage

1. Sealing Head adopts copper material, good heat transfer effect.

2. With adjust plate, Can apply to different specifications battery, and the adjusting easily
Sealing Head TEM RT-250℃, adjustable
TEM Accuracy ±2℃
Heat Sealing Pressure 0～7Kg/cm2, adjustable
Hot Sealing Time 0～99s, adjustable
Sealing Width 5mm, customized acceptable
Sealing Head Length 200mm

Suitable Battery Size

(Inner size)

 200*190*12mm
Dimensions

Work box: 570*420*750mm
Control Unit: 460*480*250mm

Inner Chamber Size:350*285*165mm
Net Weight About 76kg

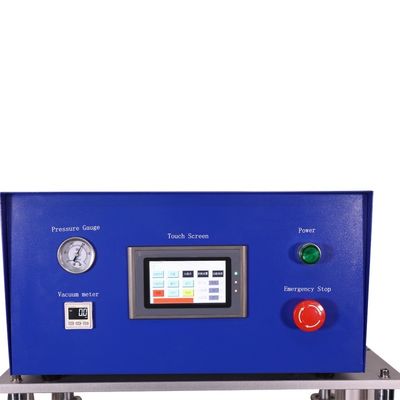

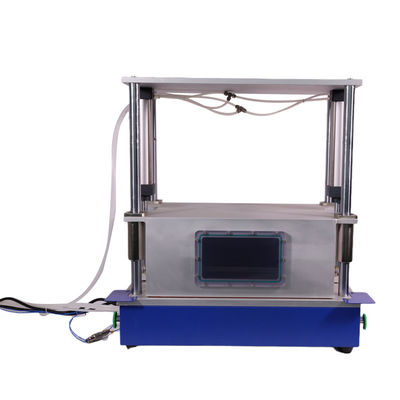

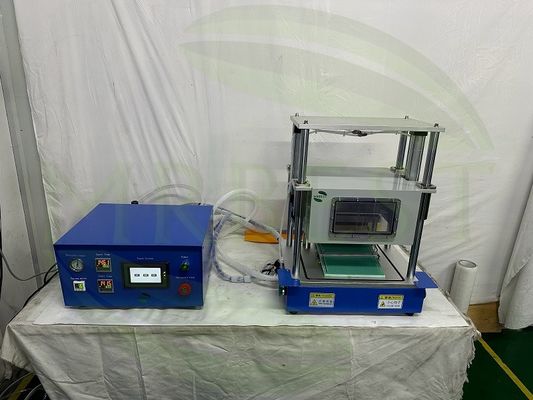

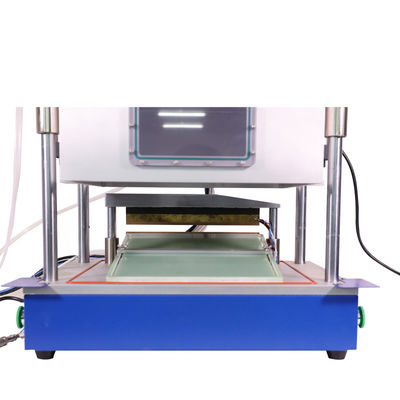

Picture for Reference



3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 2

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 3

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 4

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 5

Pouch Cell Assembly Machines



3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 6
Cylindrical Cell Machine
3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 7
Coin Cell Machines
3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 8

MRBEST Factory Show

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 9

3 In 1 Pouch Cell Hot Sealer Top / Side Edge Sealing Vacuum Sealing Vacuum Standing 10

Shenzhen Meirui Zhida Technology Co., Ltd


Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
