Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm

Large Image : Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MR-QMQ85
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm

Description

Product Name:	Pneumatic Electrode Die Cutter	Maximum Die Cutting Size:	L85mmxW65mm
Punching Accuracy:	±0.1 Mm	Vertical Burr:	≤12μm
Horizontal Burr:	≤20μm	The Life Of The Die:	Normal Use ≥30,000 Times
Air Cylinder:	Max 1T	Die Cutting Stroke:	35mm
Highlight:	Pneumatic Battery Electrode Die Cutting Machine , Pneumatic Electrode Die Cutter , Battery Electrode Die Cutter

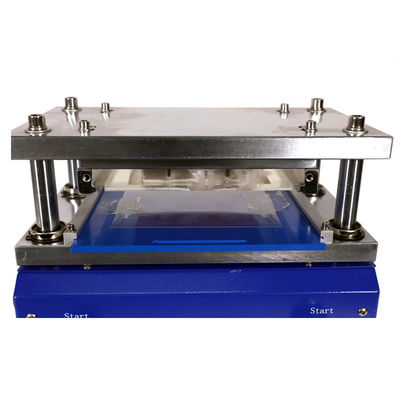

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 0

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 1

Pneumatic Die Cutting Machine For Battery Electrode Cutting

Model: MR-MQ280

MR-QMQ85 is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut (such as lithium metal electrode for LithiumSulfur, Lithium Air, and Lithium Solid-State batteries).

Main Features:

Sheet type electrode feeding, knife template for die cutting, can be placed in the glove box.
Easy to replace the cutter.
Long die life, normal use≥30,000 times.
No quality defects such as burrs, powder drop, and indentation.
Adopts four pillar structures, up and down slip smooth and high precision.
Exquisite appearance, easy to operate, safe and reliable, small size.

Specifications:

Model	Pneumatic Battery Electrode Die Cutte MR-QMQ85

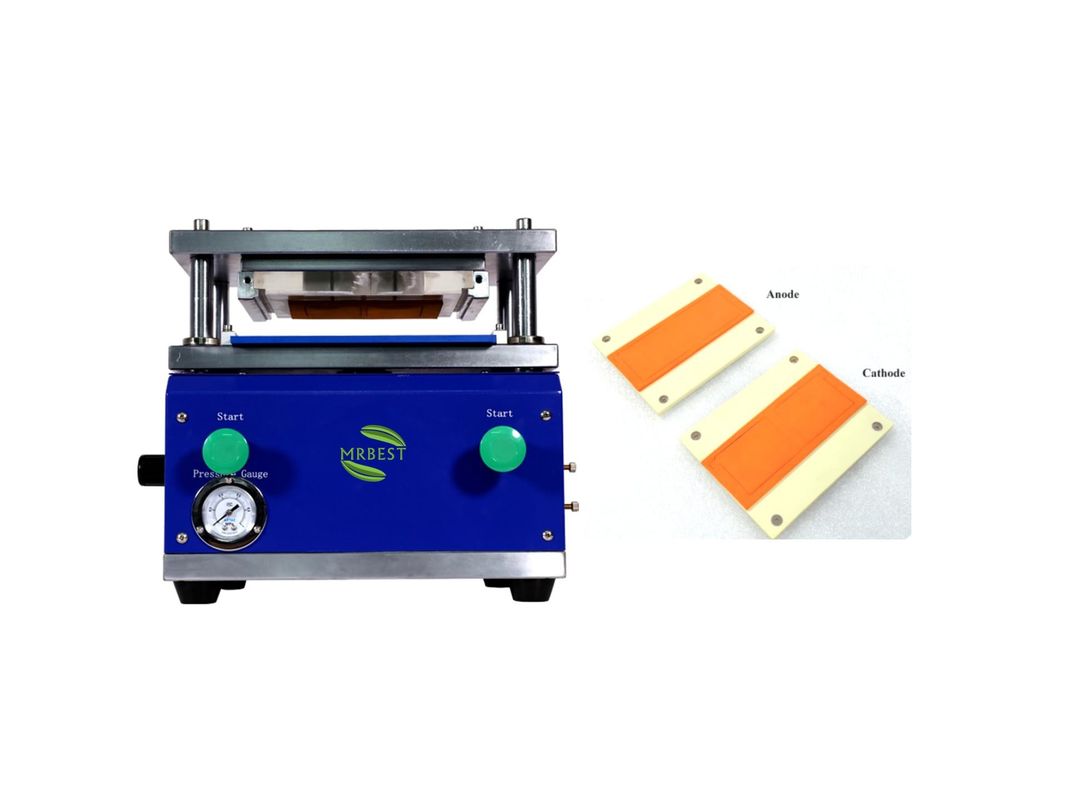

Die Set Dimensions	Two electrodes (Cathode & Anode) cutting dies are included for immediate use.
Cutting Depth	Max. 0.5mm (tested with aluminum laminated film)
Cutting Accuracy	±0.1mm
Cutting Pressure Force	Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

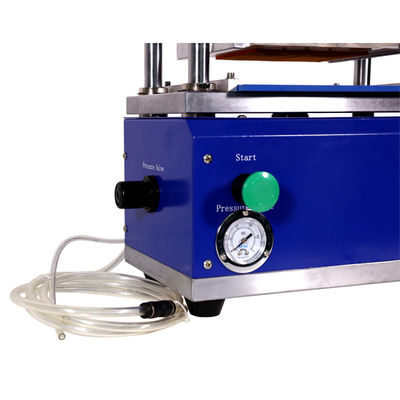

Gas Pressure	0.5~1.0Mpa (0.7Mpa is recommended) 1. For the use of inside the glove box, please use compressed inert gas such as Ar. 2. For the use of outside the glove box, you may use the air compressor, 60 psi recommended. 3. Compressor included Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Feeding	Manually
Stroke Length	12mm
Cutting Die Life Span	~30000 strokes
Compliance	CE Certified
Product Dimensions	370mm(L) x 250mm(W) x 245mm(H)
Net Weight	32KG
Warranty	One Year limited warranty with lifetime support

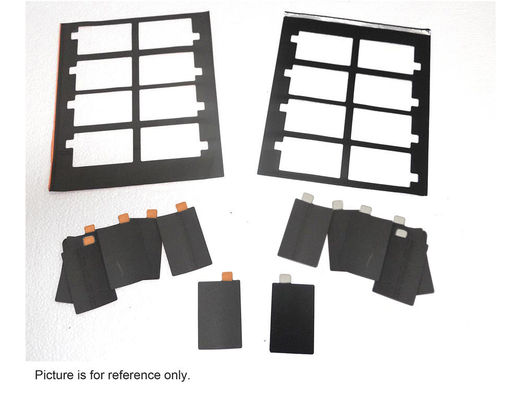

Picture for Reference

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 2

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 3

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 4

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 5

Pneumatic Battery Electrode Die Cutter Cutting Machine 85mmx65mm 6
