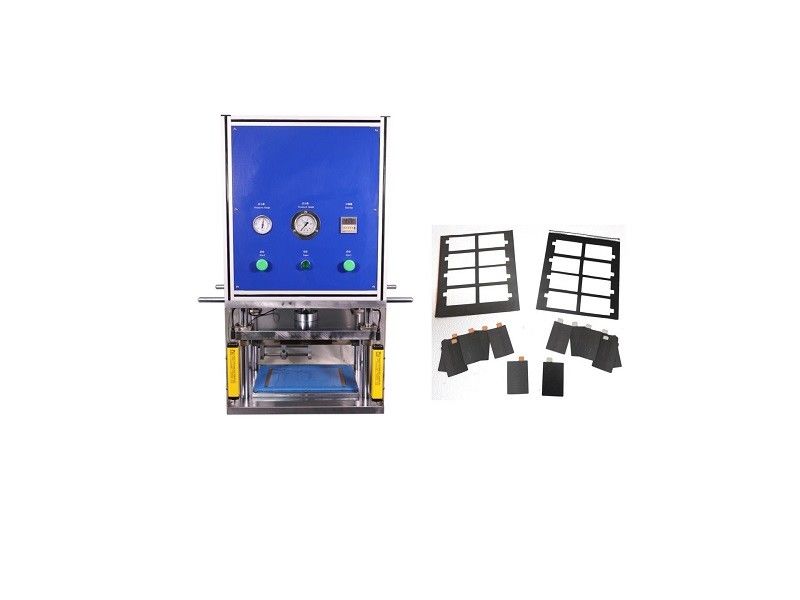

Precision Pouch Cell Assembly Battery Electrode Die Cutter 100W MR-MQ280

Pouch Cell Electrode Die Cutter For Battery Electrode Cutting


Model: MR-MQ280

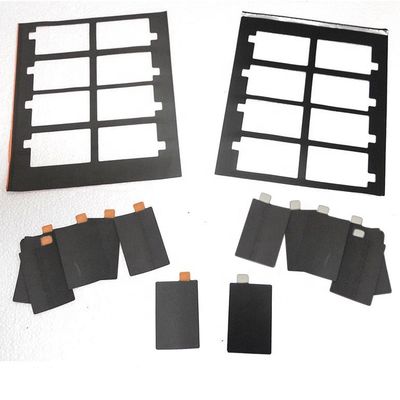

MR-MQ280 is a Precision Pouch Cell Electrode Die Cutter. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs. The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front.

Features

*Adopt infrared positioning device to accurately and conveniently locate and cut the pole piece;

* It is convenient and quick to change the die cutter;

*The die life is long, and the normal use is ≥30,000 times;

* There are no quality defects such as rough edge, clippings, or creasings;

*Between manual and fully automatic, the efficiency is 800 ~ 2000 pieces / hour;

(According to the size of the punched pole piece, you can punch 1 to 8 pieces each time, the standard is 2 pieces)

* Four guide column structure, smooth sliding up and down;

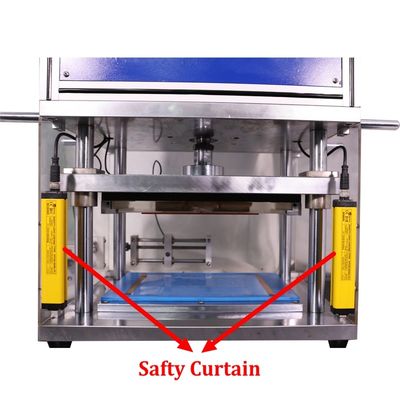

*The equipment inlet has a safety protection light curtain, which is very safe to operate;

* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

* Easy to operate, safe and reliable, small size;

Instructions

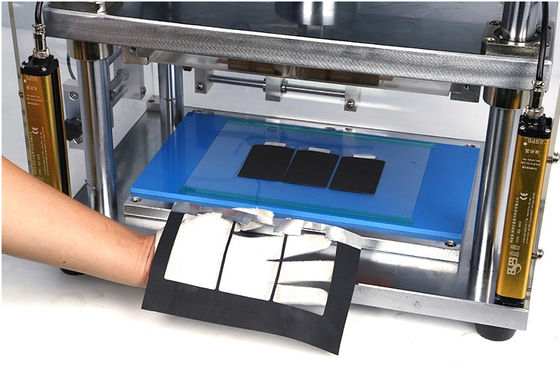

Put the electrode into the die-cutting position, and then press the foot switch. The booster cylinder drives the die-cutting knife group to automatically cut the electrode.

Specifications:

Picture for Reference

MRBEST Factory Show
