Pouch Cell Vacuum Sealer Sealing Machine For Battery Making

Model: MR-YF200

Pouch Cell Pre-sealing Machine is mainly suitable for vacuum hot sealing of pouch cell after electrolyte filling and standing; the machine can automatically complete vacuum thermal sealing of aluminum laminated film by precisely controlling the main vacuum pumping box and pneumatic heat sealing components.

Features:

* The head is made of copper material, which has good heat transfer effect, saves power consumption, improves work efficiency and saves energy compared with similar products;
*The pressure of upper and lower heads can be adjusted by pressure regulating valve to meet the requirements of different process parameters;
*The upper and lower heads are driven by cylinder and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately, ensure the requirement of parallelism after edge sealing;
*Through the perspective window, we can observe the changes in the cavity when working.
*The cover cavity is driven by cylinder and guided by rotating guide sleeve, which can move up and down flexibly and guide accurately to ensure the sealing requirements of products.
*It can be used for batteries of different specifications, and the adjustment is simple and convenient.

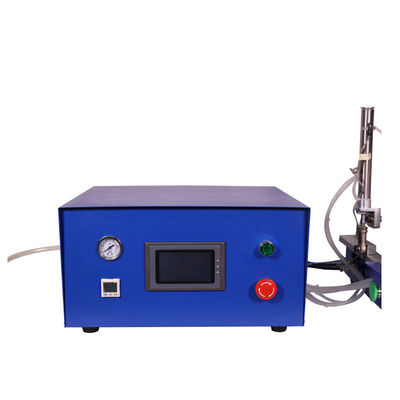

*The main engine and control box are designed separately, so that the machine can work in glove box or on assembly line.
*Simple operation, beautiful appearance, small volume and light weight.

Specification

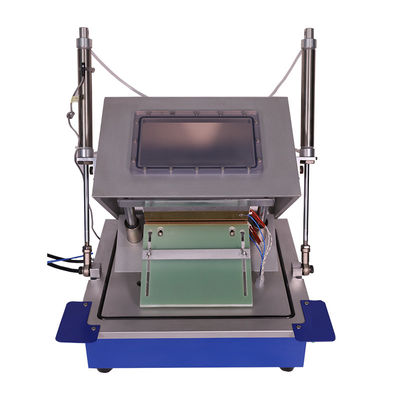

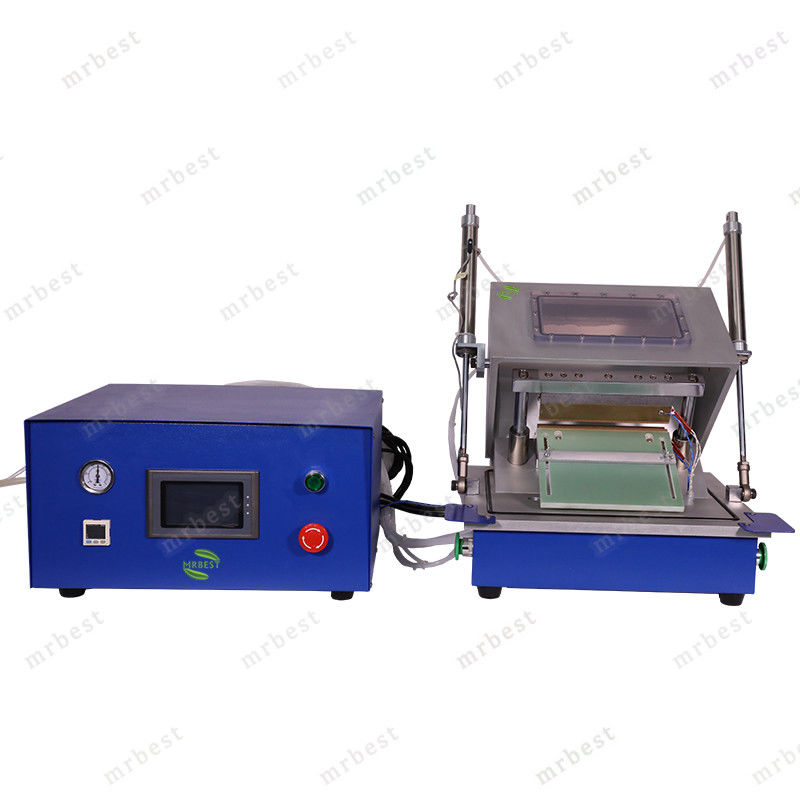

Picture for Reference

For completing the full sealing procedure, you may need the following combination:

* A. Compact Heating Sealer (suitable for top & side sealing with tab)

* B. Vacuum Sealing Machine (for pre-sealing in glove box after injection of electrolyte)

* C. Final Vacuum Sealing Machine

(for vacuuming and second sealing with automatic puncture and degassing function)

If you don't want to spend too much budget on the sealing part, machine A plus B can also meet your basic sealing need!

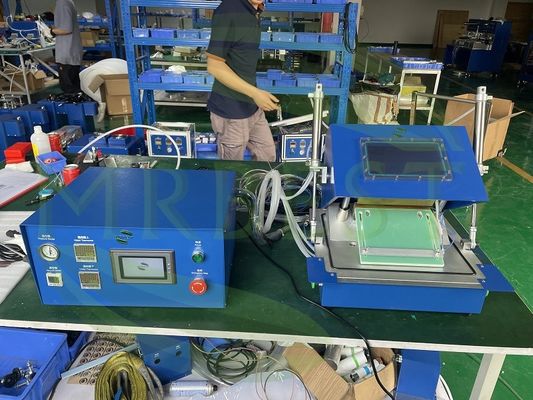

MRBEST Factory Show
