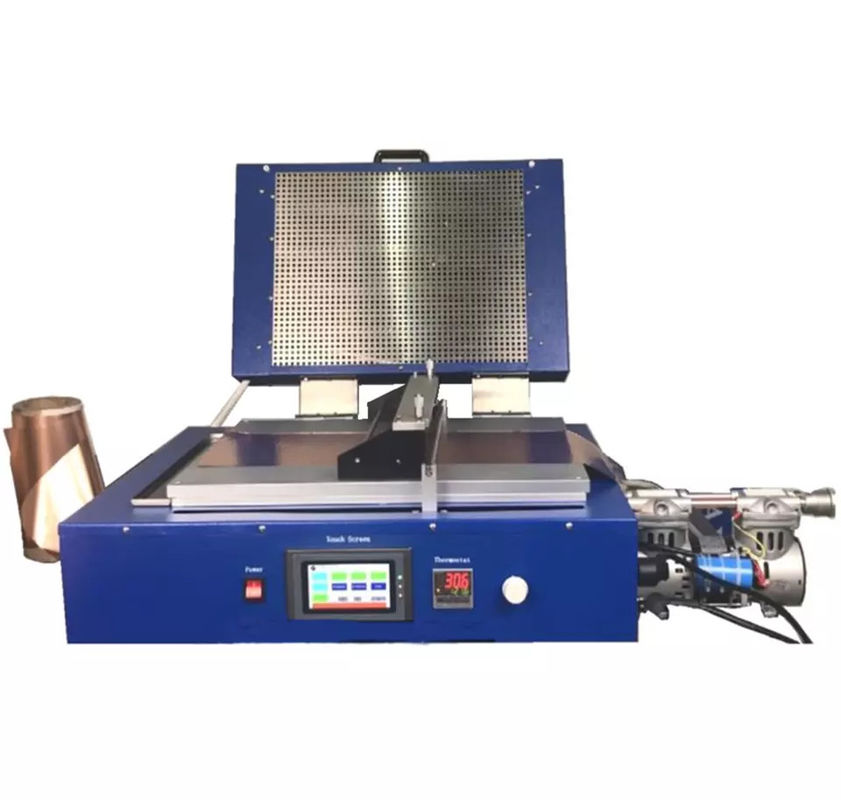

Battery Vacuum Film Coating Machine Top Heating Tape Casting Coater 800mm
Model: MR-TMH800
1. The MR-TMH800 Vacuum Film coating machine with dryer is used for varies kinds of materials coating.
2. It is supplied with vacuum pump and heating system, having an precision heating temperature up to 150℃.
3. The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.
4. With oil-less vacuum pump make the machine less noise.
5. New designed Touch Screen control make the operating more easy and simple
Features:
* Strong wind circulation drying heating, digital display temperature control, maximum working temperature 150℃；
* Digital display timer, freely set drying time；
* Coating speed can be adjusted within the range of 0 ～ 200mm / s；
* Vacuum aluminum pan for quick placement or removal of substrates；
* The stroke can be adjusted by the stroke switch between 0 ～ 800mm；
* Squeegee with adjustable coating thickness (0.01mm accuracy)；
* Small size could saves space；
* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful；
Specifications
| Model |
Automatic Film Coating Machine with Dryer MR-TMH800 |
| Source Voltage |
AC110V-240V, 50/60HZ |
| Power |
1.8KW |
| Coating Speed |
0-200mm/s, Step-less transmission Accuracy: 10mm/sec |
| Effective Coating Area |
150mm/200mm*800mm |
| Advantages |
Supply with dry function, vacuum pump |
| Stroke Length |
0 - 800 mm adjustable by using Adjustable Position Switch |
| Platform |
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 900mm(L) * 200mm(W)*32mm(T)
|
| Slicker Width |
0-200mm |
| Slicker Adjustable Range |
0.01-3.5mm |
| Heating Dry System |
RT-150°C, Digital temperature controller |
| Temperature Control Accuracy |
±1°C |
| Dimension |
1000*350*320mm |
| Weight |
About 100kg |
| Package Size |
1400*550*550mm |
| Package Weight |
120kg |
| Warranty |
1 Year limited warranty with lifetime support |
| Additional Feature |
1. with Oilless vacuum pump

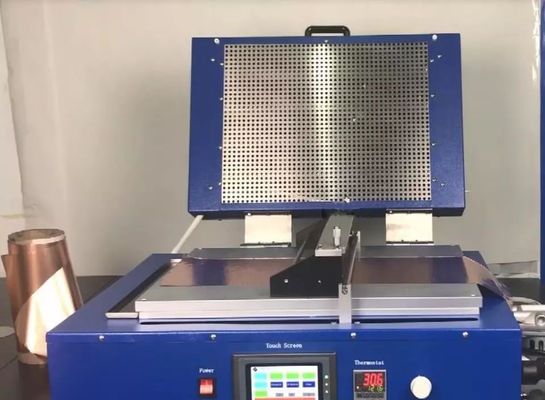

2. Heating system : Installed on the top cover (Bottom heating optional)
Built in digital temperature controller with accuracy of +/-1°C.
Suspension support helps open cover easily and safely.
Max. Heating Temp.:150°C

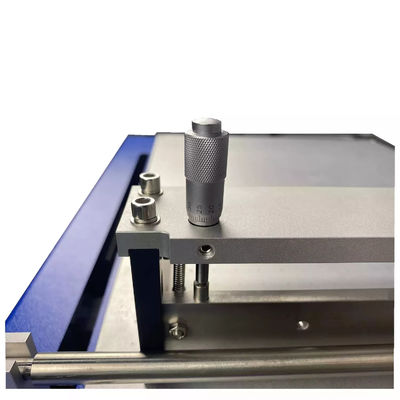

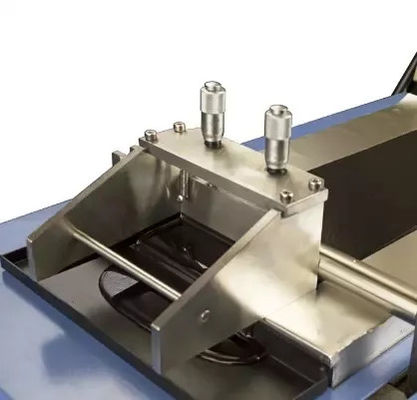

3. One 150mm/200mm width micrometer film applicator
4. Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed
|
Picture Display
Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd. is a Manufacturer specializing in a Complete Set of Lithium Ion Battery Research Equipment. MRBEST has been committed to providing customers with comprehensive Battery Research and Development Equipment to meet customers' new Lithium Battery Technology and New Needs in recent years, such as Sodium Batteries, Solid-state Battery and Semi-solid-state Battery Equipment, special process requirements such as dry process, 4680 large cylindrical battery equipment requirements etc. Create One-Stop Service for Battery Research Equipment for customers and provide Professional Technical Guidance and Support.
MRBEST related products include: Vacuum Mixers, Planetary Vacuum Mixers, Lab Transfer Coating Machine, Automatic Film Coating Machine, Electric Vertical Roller Machine, Pneumatic Die-cutting Machines, Electric Sealing Machines, Vacuum Pre-sealing machine, Secondary Sacuum Sealing Machine, Coin Cell battery Sealing Machine, Battery Winding Machine, Pouch Cell Sealing Machine, Ultrasonic Spot Welding Machine, Glove Box with Purification System etc. MRBEST products have been sold at home and abroad. Our main customer include: Universities, Research Institutes, Battery Positive and Negative Material Companies, Battery Cell Manufacturers, and New Energy EV Battery Manufacturers etc.
