Battery Electrode Die Cutting Machine 280x180mm For Pouch Cell
Our Product Introduction
for more products please visit us on lithiumbatterymachine.com
Basic Information
Place of Origin:
China
Brand Name:
MRBEST
Certification:
CE
Model Number:
MR-MQ280
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Standard Export Wooden Packing
Delivery Time:
7-20 working days
Payment Terms:
T/T, Western Union, MoneyGram
Supply Ability:
500 sets per month
Product Specification
Product Name:
Battery Electrode Cutter Die Cutting Machine
Maximum Die Cutting Size:
280x180mm
Punching Accuracy:
±0.1 Mm
Vertical Burr:
≤15μm
Horizontal Burr:
≤20μm
The Life Of The Die:
Normal Use ≥30,000 Times
Air Cylinder:
3 Tons Max. Pressure
Die Cutting Stroke:
150mm
Highlight:
Electrode Die Cutting Machine 280x180mm
,Pouch Cell Electrode Die Cutting Machine
,Pouch Cell Battery Die Cutting Machine
Our Product Introduction
for more products please visit us on lithiumbatterymachine.com
Product Description

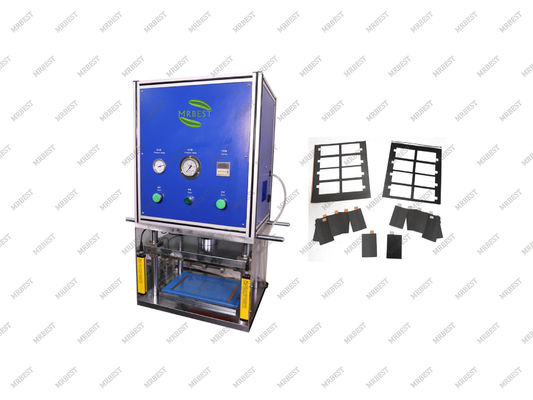

280*180mm Battery Electrode Cutter Die Cutting Machine For Pouch Cell Battery Making
Model: MR-MQ280
MR-MQ280 Battery Electrode Cutter Die Cutting Machine is a necessary equipment for pouch cell preparation. It is used for pouch cell electrode cutting to produce specific shapes of cathode and anode with current collector tab. Dual start buttons to ensure safety operation to avoid hands injured. The cutting without burr and high accuracy.
Features
● Different size of cutting die can be optional and easy to replace.
● The cutting no burr, no coated material drop.
● 2 Start buttons, the die can only go down only when pressing the 2 buttons at the time to avoid hurting hands.
● It is designed with counter, the operator can know the cutting numbers easily.
● It is semi-auto, high cutting speed.
● Long lifetime for the cutting die, >30000 times.
Technical Parameters
| Model | Battery Electrode Cutter Die Cutting Machine MR-MQ280 |
| Working voltage | AC110/220V optional |
| Cutting die size | maximum L280 * W180mm, customized size is available |
| Cuting accuracy | ±0.1mm |
| Air cylinder | 3T |
| Air pressure | 0.5~0.7Mpa |
| Material feeding | Manual |
| Capacity | 800~2000pcs/h |
| Dimension | L550 * W455 * H900mm |
| Weight | 170kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
