Automatic Film Applicator Coater with Vacuum Chuck and Adjustable Doctor Blade For Battery Electrode Coating MR-TM300
Model: MR-TM300
MR-TM300 is a Automatic Film Coater with Vacuum aluminum plate designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when coating on thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting. crystal film, special nanometer film and Li-Ion battery electrode coating.
This model is without heating function, Heating lid is available at extra cost for drying . please select mode MR-TMH250 if need hot function.
Features:
* Use large area uniform heating to ensure high temperature uniformity in the cavity;
* Flat coating, motor driven blade coating, coating speed is stable and adjustable;
*Adjustable film speed, vacuum aluminum plate can quickly place or remove copper foil, aluminum foil etc.,
* Standard filming device, high coating precision, adjustable coating thickness;
* Can be used in the glove box, easy to operate and small size, saving space;
* PLC Touch screen control, easy to operate.
Specifications
| Model |
Automatic Film Coater MR-TM300 |
| Working Voltage |
110V AC or 208 - 240V AC 50/60Hz Single Phase |
| Power |
200W |
| Traverse Speed |
0 - 120 mm/sec variable
Accuracy: 10mm/sec
|
| Max Stroke |
300 mm |
| Max. Coating Dimensions |
100/ 150mm(W) * 300mm(L) |
| Platform |
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) *200mm(W) *30mm(H)
|
| Film Applicator |

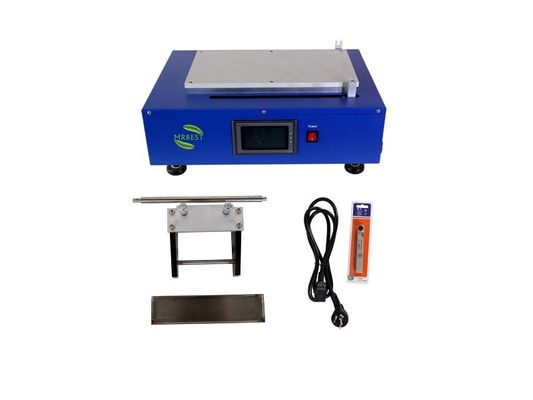

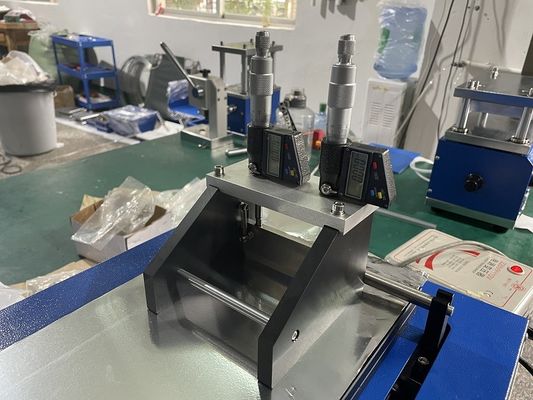

One 100/150 mm width Micrometer Adjustable Film Applicator is included,
with adjustable thickness from 0.01 mm - 3.5 mm
Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
|
| Product Dimensions |
550mm(L) *310mm(W) * 330mm(H) |
| Net Weight |
50kg |
| Warranty |
One year limited warranty with lifetime support |
| Application Notes |
Rolling is absolutely necessary to ensure good density and adhesion of electrode materials to the current collector substrate after coating. Please select a rolling press from here.
You may need a vacuum oven to dry the films after coating
You may need a vacuum mixer to remove air bubbles inside the slurry and to make all coatings uniform
You may need a Slurry Viscosity Tester to make coatings consistent
|

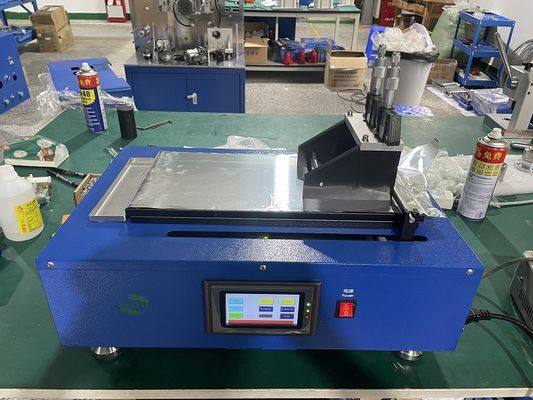

Picture Display
Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd. is a Manufacturer specializing in a Complete Set of Lithium Ion Battery Research Equipment. MRBEST has been committed to providing customers with comprehensive Battery Research and Development Equipment to meet customers' new Lithium Battery Technology and New Needs in recent years, such as Sodium Batteries, Solid-state Battery and Semi-solid-state Battery Equipment, special process requirements such as dry process, 4680 large cylindrical battery equipment requirements etc. Create One-Stop Service for Battery Research Equipment for customers and provide Professional Technical Guidance and Support.
MRBEST related products include: Vacuum Mixers, Planetary Vacuum Mixers, Lab Transfer Coating Machine, Automatic Film Coating Machine, Electric Vertical Roller Machine, Pneumatic Die-cutting Machines, Electric Sealing Machines, Vacuum Pre-sealing machine, Secondary Sacuum Sealing Machine, Coin Cell battery Sealing Machine, Battery Winding Machine, Pouch Cell Sealing Machine, Ultrasonic Spot Welding Machine, Glove Box with Purification System etc. MRBEST products have been sold at home and abroad. Our main customer include: Universities, Research Institutes, Battery Positive and Negative Material Companies, Battery Cell Manufacturers, and New Energy EV Battery Manufacturers etc.
