Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating
Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating

Large Image :  Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-SY300-1J
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating

Description
Name: Battery Coating Machine Coating Method: Continuous Coating, Interval Coating
Oven Section Number: 1 Section 1 Meter Oven Roll Surface Design Width: 330mm
Ensure Coating Width: ≤280mm Substrate Thickness: Aluminum Foil：8～30um；Copper Foil：8～30um
Highlight:

Laboratory Battery Coating Machine

,

PLC control Battery Coating Machine

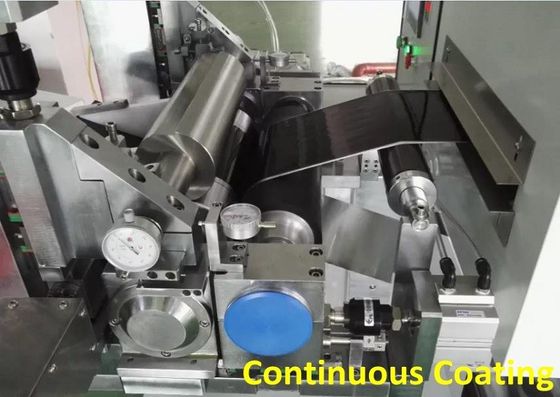

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 0

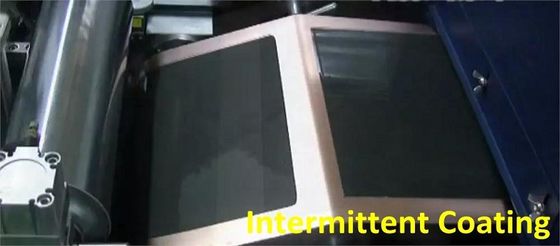

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 1



Battery Coating Machine Continuous and Intermittent Coating Machine



Battery Coating Machine is a three-roller transfer coating equipment. It can carry out continuous and intermittent coating, which is convenient to be applied to the equipment for surface coating process of various substrates. Especially used in the lithium ion battery industry. The equipment is designed to be convenient for researchers to use while meeting the requirements of coating accuracy and consistency, which is no different from production. The drying effect is excellent, and it is an ideal choice for the research and development and small tests of lithium ion batteries, super capacitors, nickel batteries and other secondary batteries.



Features



*Substrate tension control, stable belt, configuration of correcting device;

*Hot air oven, double-sided airing on the top and bottom, good drying effect;

*Three-roll transfer coating with a wide coating window;

*Comma scraper metering, with precision adjustment mechanism, to achieve high coating accuracy;

*PLC control, touch screen operation, easy to use;

*Optional solvent recovery treatment device;



Installation environment requirements:



Machine head ambient temperature 25~30℃,Other:10~40℃；

Machine head relative humidity: positive RH ≤35%, negative RH ≤98%,others ≤98%；



Equipment function:



Model MR-SY300J Roll to Roll Coating Machine
Dimension L 1800*W 1300*H 1200mm
Weight About 1.2T
Power supply 3PH 380V,50HZ,
Voltage fluctuation range +8%～–8%；
start total power 10KW
Compressed air After drying, filtration and stabilivolt: outlet pressure＞5.0kg/cm2
Suitable system Lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, graphite and silicon carbon system battery positive and negative electrode coating process
Coating method Continuous coating, interval coating
Oven section number 1 section 1 meter oven
Substrate thickness Aluminum foil:8～30um；Copper foil:8～30um
Roll surface design width 330mm
Ensure coating width ≤280mm
Coating ±3um
Double-sided coating weight accuracy (mg/cm2) Coating center value ±1.0%
Slurry viscosity 2000~12000 (mPas)
Single-coated dry thickness range 20-200μm
Solvent characteristics Oily solvent NMP(s.g=1.033,b.p=204℃)
Watery solvent H2O/NMP(s.g=1.000,b.p=100℃)
Solid content 20~85%
Coating dimension accuracy(mm) L≤±1,W≤±0.5
Positive and negative alignment accuracy(mm) L≤±1,W≤±0.5



Product Display

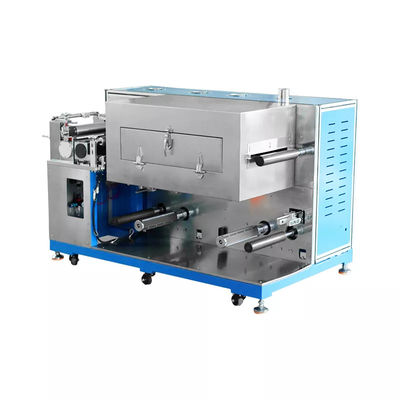

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 2

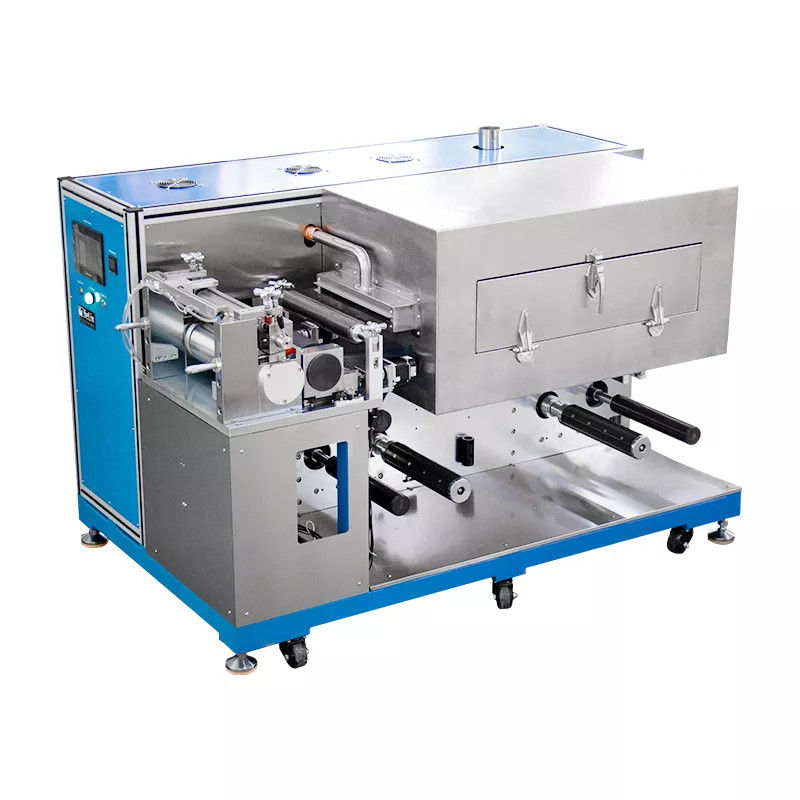

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 3

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 4

Factory Show



Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 5

Shenzhen Meirui Zhida Technology Co., Ltd. is a Manufacturer specializing in a Complete Set of Lithium Ion Battery Research Equipment. MRBEST has been committed to providing customers with comprehensive Battery Research and Development Equipment to meet customers' new Lithium Battery Technology and New Needs in recent years, such as Sodium Batteries, Solid-state Battery and Semi-solid-state Battery Equipment, special process requirements such as dry process, 4680 large cylindrical battery equipment requirements etc. Create One-Stop Service for Battery Research Equipment for customers and provide Professional Technical Guidance and Support.



MRBEST related products include: Vacuum Mixers, Planetary Vacuum Mixers, Lab Transfer Coating Machine, Automatic Film Coating Machine, Electric Vertical Roller Machine, Pneumatic Die-cutting Machines, Electric Sealing Machines, Vacuum Pre-sealing machine, Secondary Sacuum Sealing Machine, Coin Cell battery Sealing Machine, Battery Winding Machine, Pouch Cell Sealing Machine, Ultrasonic Spot Welding Machine, Glove Box with Purification System etc. MRBEST products have been sold at home and abroad. Our main customer include: Universities, Research Institutes, Battery Positive and Negative Material Companies, Battery Cell Manufacturers, and New Energy EV Battery Manufacturers etc.

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 6

Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 7Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 8Laboratory Battery Coating Machine PLC control Continuous And Intermittent Coating 9
