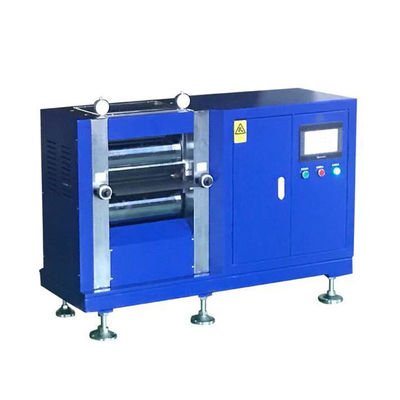

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Large Image : Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MR-DG300
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine

Description

Product Name:	Battery Calendering Machine	Roller Diameter:	φ200mm
Roller Width:	330mm	Pressing Speed:	Max 6m/min
Installation Size:	L2500 X W1500 X H1300mm	Weight:	600kg
Highlight:	6m/min Pouch Cell Assembly , Pouch Cell Assembly High Automation , Lithium Battery Calendering Machine

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 0

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 1

Battery Calendering Machine for Lithium Battery Assembly

Model: MR-DG300

Battery Calendering Machine is a hydraulic roller press machine, which is used for battery electrode rolling press process for Lithium Battery Assembly. Winding&unwinding device is optional.

Main Features:

• The pressing thickness is adjustable.

• It is designed with tension control.

• Winding & unwinding device with correction function.

• Touch screen control, high automation.

Specifications:

Model	Battery Calendering Machine MR-DG300
Pressing pressure	Max 25T, customized pressure is available
Pressing speed	Max 6m/min
Roller diameter	φ200mm
Roller material	9Cr3Mo
Roller surface hardness	＞HRC65
Roller width	330mm
Pressing thickness	Max 2mm
Pressing accuracy	±1.5μm
Power supply	AC220V
Power	3KW
Installation size	L2500 x W1500 x H1300mm ( Roll press machine + winding & unwinding device )
Compressed air	0.5~0.8Mpa
Weight	≈ 600kg

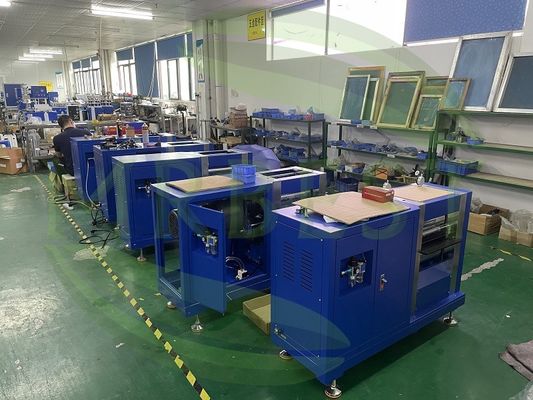

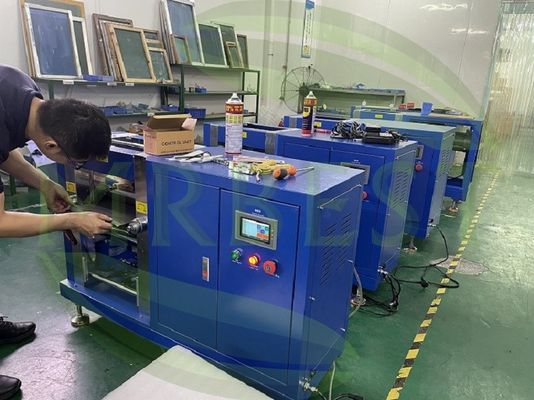

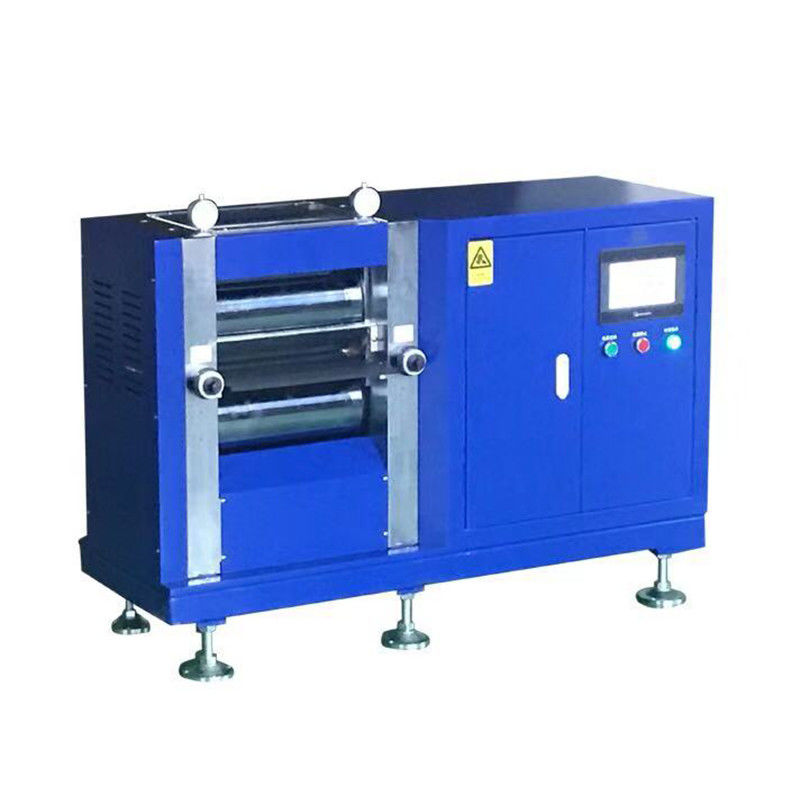

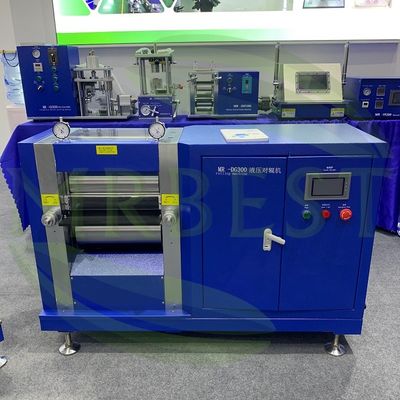

Picture for Reference

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 2

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 3

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 4

Optionla Pressure Controlled Rolling Press Machine with Winding and Unwinding Device

Max 6m/Min Pouch Cell Assembly High Automation Lithium Battery Calendering Machine 5

Pouch Cell Assembly Machines

Cylindrical Cell Machine

Coin Cell Machines

MRBEST Factory Show

Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
