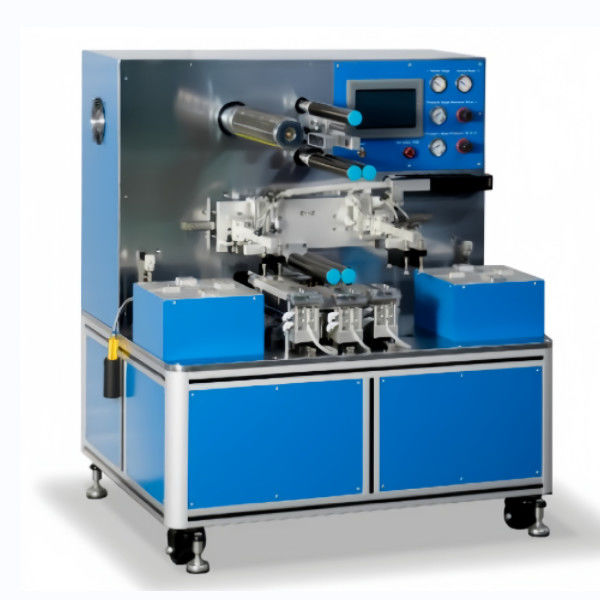

Layer by Layer Stacking Machine for Pouch Cell Electrode
Model: MR-BDP200-C
Product Introduction:
It is mainly used for the assembly of Z-shaped laminations of lithium battery positive, negative electrode and diaphragm.
The device realizes manual loading, subsequent pole piece position correction and lamination process by fully automatic, and has the characteristics of high lamination efficiency and high stacking precision. The device can be designed to stack up to 200*200mm batteries. Different sizes can be realized by adjusting fixtures, which is very suitable for the development and sample preparation of laminated lithium-ion batteries. The device adopts a single cantilever structure design, and the coil isolation membrane automatically controls the constant tension, and the motor drives the diaphragm to move left and right to realize the zigzag lamination.
Main Features:
*The number of laminations can be automatically controlled according to preset settings;
*Adopt compatibility design, the battery size change can be realized by adjusting the positioning fixture, and the adjustment range is large;
*PLC control, HMI operation, easy to use and maintain;
*Pole piece manual loading, automatic positioning, automatic suction of the robot, automatic stacking;
* The diaphragm is forcibly guided and the pole piece is mechanically positioned to ensure high lamination accuracy;
Technical Specifications
| Model |
Semi-Auto Layer by Layer Stacking Machine MR-BDP200-C |
| Working Voltage |
AC220V 50/60Hz |
| Power |
1KW |
| Stackable Size |
Max. L 200mm * W 150mm
Min. L 62mm * W 46mm
|
| Stackable Layers |
Up to 500 layers |
| Stacking Speed |
Up to 5 layers/min |
| Max. Electrode Thickness |
Piled up thickness < 10 mm |
| Aligning Accuracy |
±0.5 mm for stacked electrodes |
| Acceptable Separator Roll Size |
I.D>3'' (76mm)
O.D<9.8'' (250mm)
|
| Stacking Fixture |
One set of 80 x 50mm stacking die fixture is included for immediate use.
If you need different size electrode stacking, please inform us before order. We will make for your at extra cost.
Allowable customization size:
Max. 200mm x 200mm; Min. 80 mm x 50 mm
|
| Vacuum Pump |
An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator. |
| Suggested Air Pressure |
0.5 - 0.8 MPa (Air compressor is not included in the standard package.) Attention: If a gas cylinder is used instead of air
compressor, a two-stage pressure regulato must be installed on the gas cylinder to limit the pressure within the
required working range for safe operation.
|
| Product Dimensions |
1200 mm L x 800 mm W x 900 mm H |
| Weight |
500 kg |
| Compliance |
CE Certified |
| Warranty |
One Year limited warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance is not covered by warranty
|
| Application Notes |
Note: please confirm electrode sheet size before order (each mold only fit with one size electrode) |
Maintenance methods and precaution
1. Always wipe the pendulum roller and the lamination table to keep it clean.
2. The moving parts of the bearing slides are lubricated to keep the movement smooth.
3. If it is not used for a long time, wipe the surface of the machine clean and wrap the packaging tape for storage.
4. Regularly check the screws, nuts, pins and other fasteners in all parts of the machine to prevent looseness and prevent machine quality accidents and personal accidents.

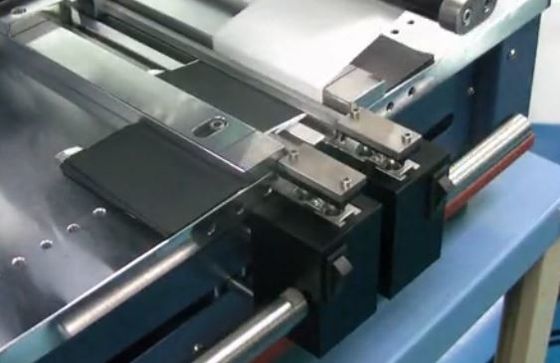

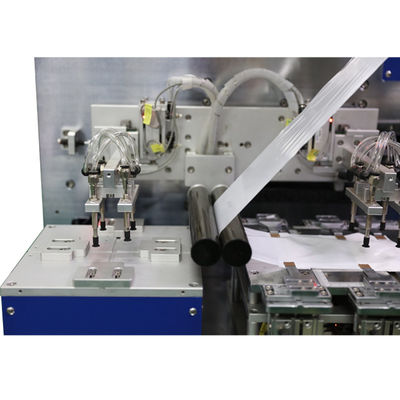

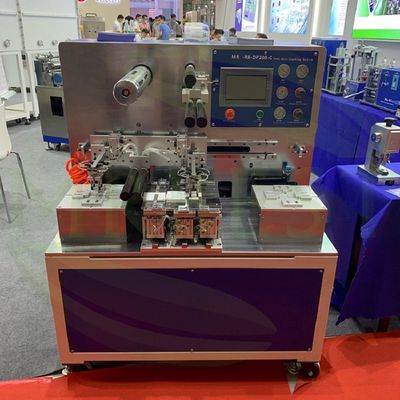

Picture for Reference
