Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking
Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking

Large Image :  Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-BDP200-A
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking

Description
Product Name: Manual Battery Stacking Machine Stacking mode: Z Fashion
Max separator feeding diameter: φ250mm Fixed Travel Distance: 300mm
Applicable electrode Size: Length:20～200mm Width: 20～200mm Thickness: Within 18mm Travel Cycle: 1 - 9999 Cycles
Power: 100W  Working Voltage: AC110V-220V 50/60Hz
Highlight:

Manual Lithium Battery Stacking Machines

,

Lab Lithium Battery Stacking Machines

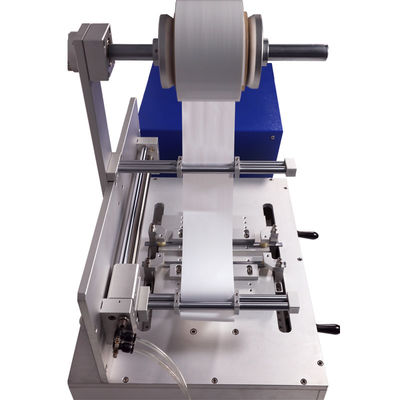

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 0

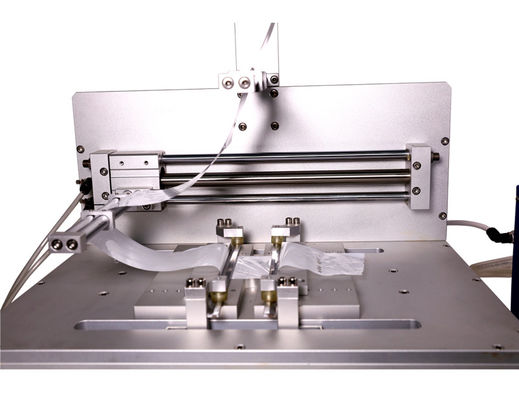

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 1



Lab Manual Lithium Battery Stacking Machines for Pouch Cell Electrode Stacking


Model: MR-BDP200-A


Application: It’s used for stacking battery electrode and separator to multiple

layers to make battery core.



Product Introduction:

MR-BDP200-A is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.



Main Features:

*Desktop, can put in a normal desktop;

*Machine calibration, easy operation and maintenance;

*The machine used batteries size range is large;

*Work with high efficiency, with digital display counter;

*Use the foot switch control cylinder action



Technical Specifications



Model Battery Stacking Machine MR-BDP200-A
Working Voltage AC110V-220V 50/60Hz
Power 100W
Stacking mode Z fashion
Max separator feeding diameter φ250mm
Fixed Travel Distance 300mm
Applicable electrode size

Length:20～200mm

Width: 20～200mm

Thickness: within 18mm

Larger model for apply larger electrode is also available
Travel Cycle 1 - 9999 cycles
Suggested Air Pressure

0.5 MPa (Air compressor is not included in the standard package.

Attention: If a gas cylinder is used instead of air compressor a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Product Dimensions

Stacking Platform: 650mm(L) x 400mm(W) x 700mm(H)

Control Box: 200mm(L) x 300mm(W) x 380mm(H)

Glove-box Compatible



Like in Lithium- sodium research, MR-BDP200-A can be used in the glovebox while order customized feed through to use in glove-box.

Compact design enables the operation inside the glove box with Ar atmosphere where Lithium Sulfur, Lithium Air, Lithium Solid State or Li-ion half cell will be assembled.
Warranty One Year limited warranty with lifetime support
Weight 30kg
Shipping Weight & Dimension

37kg 500*500*600mm

31kg 400*450*240mm


Picture for Reference

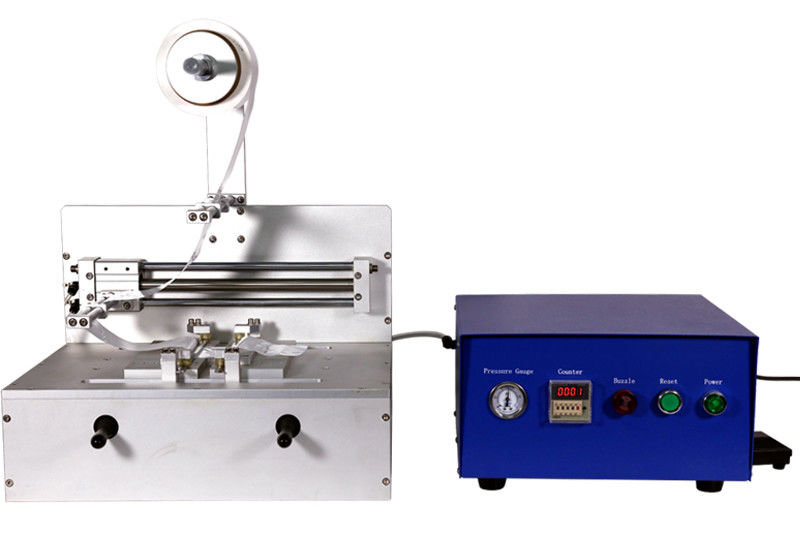

 Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 2

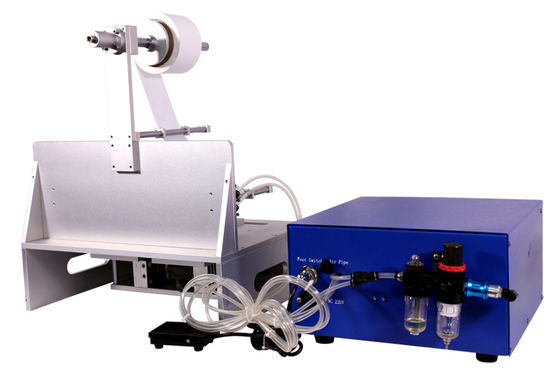

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 3

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 4

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 5

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 6

Pouch Cell Assembly Machines



Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 7
Cylindrical Cell Machine
Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 8
Coin Cell Machines
Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 9

MRBEST Factory Show

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 10

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 11

Lab Manual Lithium Battery Stacking Machines For Pouch Cell Electrode Stacking 12

Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
