Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell
Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell

Large Image :  Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-XC-40K
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell

Description
Product Name: Ultrasonic Spot Welding Machine Max. Power Consumption: 2200W→can Be Customized
Welding Area: 3mm(L) X 3mm(W)→ Can Be Customized Ultrasonic Frequency: 40K Hz→ Can Be Customized
Welding Time: 0.01~2S Welding Pressure: 0.5~0.7Mpa
Welding Layers: 20 Layers For Reference, Depending On Different Material  Application: For Welding Both Aluminum & Copper Current Collectors
Highlight:

Pouch Cell Ultrasonic Metal Spot Welder

,

Pouch Cell Ultrasonic Spot Welding Machine

,

Ultrasonic Spot Welding Machine

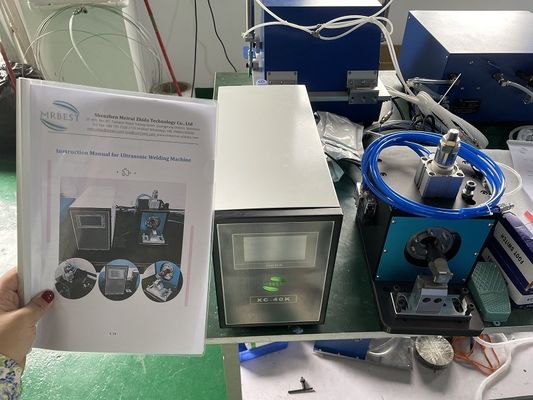

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 0

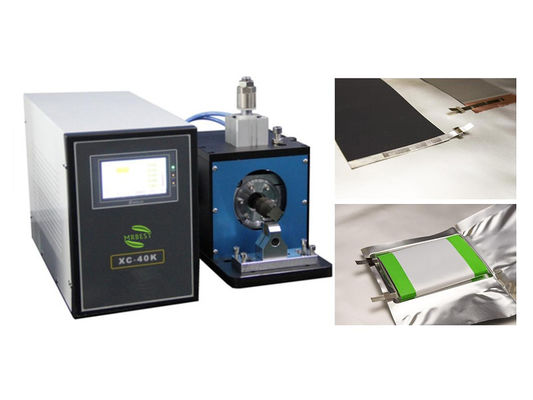

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 1



Ultrasonic Metal Spot Welding Machine for Pouch Cell


Model: MR-XC-40K

MR-XC-40K is a CE Certified ultrasonic metal welder, It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab. If with bigger battery with layer up to 50 layers, can choose the 3000W model, and If need to weld up to 60 layers, please choose 4500W model.

Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Specifications:



Model Ultrasonic Spot Welding Machine MR-XC-40K
Input Voltage AC 110V or 220V +/-10%, 50/60Hz
Max. Power Consumption 2200W→can be customized
Welding Area 3mm(L) x 3mm(W)→ can be customized
Welding Head The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 40 layers
Ultrasonic Frequency 40K Hz→ can be customized
Product Dimensions

1. Controller: 360mm(L) x 480mm(W) x 200mm(H)
2. Welder: 200mm(L) x 460mm(W) x 270mm(H)
Net Weight 70kg
Compliance CE Certificate
Warranty One Year limited warranty with lifetime support
Application Notes

Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes.
Copper: about 0.15~2+0.15~2mm
Aluminum: about 0.2~3+0.2~3mm
Nickel: about 0.1~1.2+0.1~1.2mm



Picture for Reference



Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 2

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 3

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 4

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 5

Pouch Cell Assembly Machines



Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 6
Cylindrical Cell Machine
Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 7
Coin Cell Machines
Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 8

MRBEST Factory Show

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 9

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 10

Ultrasonic Metal Spot Welding Machine 0.5 - 0.7Mpa Pressure For Pouch Cell 11

Shenzhen Meirui Zhida Technology Co., Ltd
Manufacturer Vendor for Lithium Battery Equipment in Shenzhen China
MRBEST Engineers has over 20 years experience in Lithium-ion Battery Researching and Manufacturing!
MRBEST International Sales Team has over 10 years export experience
24*7 Online after-sale dept and quick response!
Provide complete solution for Battery & Material Research Equipment
MRBEST Factory with ISO Certificate and products are CE approved
