25T Max. Pressure Controlled Rolling Press Machine for Battery Electrodes

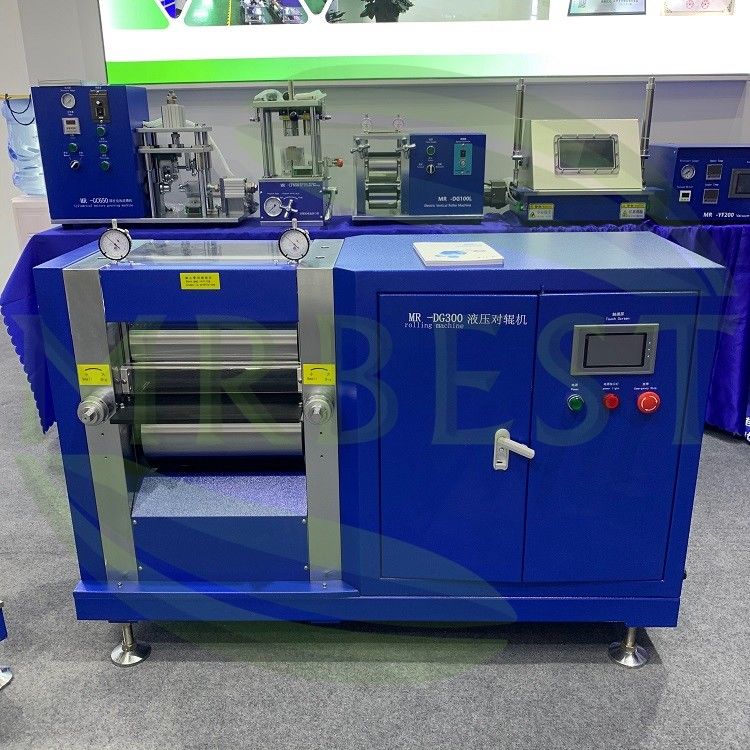

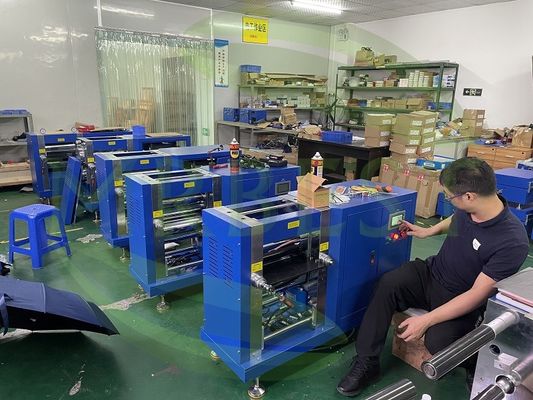

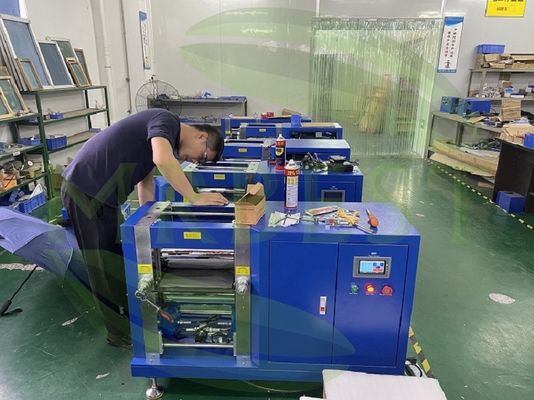

Model: MR-DG300
The hydraulic balanced electric roller is used for high-precision rolling of battery electrode. The equipment has good horizontal and vertical uniformity in rolling and provides high-quality rolling performance. The equipment is used for roller rolling with the pressure provided by the hydraulic system. It is suitable for occasions where the consistency of rolling force and rolling gap is required to be high. It biggest roller press width is 300mm.
Optional Device: Tension Controlled Winding and Unwinding Devices with the electric rolling press machine, which can roll to roll continuous Electrode calendering, suitable for battery electrode roll to roll calendering for pilot scale research work.
You can also just choose the Hydraulic roller press machine without winding and unwinding device as model MR-DG300 Or you can also add heat function to this roller press machine with Temperature up to 100C as model MR-DG300T or MR-DG300TC with winding and unwinding as continuous model.
Main Features:
Rolling Application: rolling the battery material coated on aluminum foil or copper foil surface
Maximum opening thickness of the rolling mill: 3 mm
Rolling width: max 300 mm
*Integral gantry frame, CNC precision machining to ensure high precision and stability;
*The roller is made of imported cold-rolled chrome molybdenum material by heat-treated surface chrome plating and cryogenic treatment, with high internal and external hardness and good wear resistance;
*American original imported hydraulic system, automatic control rolling pressure;
*Patented hydraulic balanced rolling mechanism, stable pressure maintaining, good rolling uniformity in transverse and longitudinal direction;
*Inclined block type roll gap adjustment device, surface display adjustment;
Specifications:
| Model |
Pressure Controlled Hot Rolling Press Machine
MR-DG300
|
| Working Voltage |
208 - 240 VAC, 50/60Hz, Single Phase |
| Max. Power Consumption |
4KW |
| Rollers (one pair) |
Dimensions: 200mm (Dia.) x 300mm(W)
Material: Hardening Toll Steel above HRC65
Effective Rolling Width: <250mm
|
| Press gap |

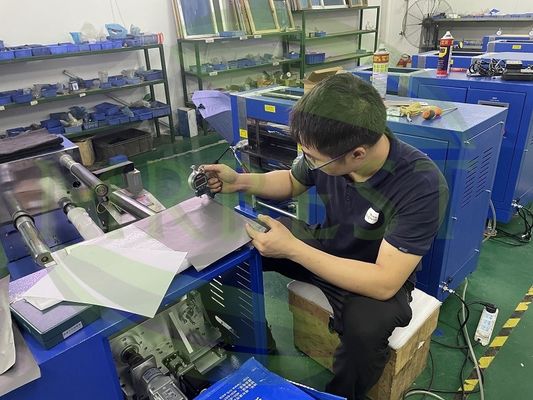

0.050 - 3 mm adjustable by Dual micrometer knobs
Tolerance: 0.003mm
|
| Press Type |
Hydraulic |
| Rolling Accuracy |
±2um |
| Maximum Opening of the Rolling Press Machine |
3mm |
| Reducer and Sub-gearbox |
Combined Type |
| Motor & Rolling Speed |
AC Frequency Conversion Motor
Max.6m/min adjustable by Touch Screen Control Panel
|
| Heating Method |
Electric Heating Roller |
| The single calendering thickness of lithium electrode sheet is 20%-30% comparing to sheet original thickness, if need more thinner, which need multi-time thickness calendering, 5um/ 1 time |
| Roller Surface Hardness |
65 HRC
Never roll materials with hardness >50HRC
|
| Press Planeness |
±0.0025mm |
| Pressure Control |
Pressure load: 1 - 25 Tons adjustable by Touch Screen Control Panel
Real time pressure displays with data recording function
|
| Rectifying Sensor |
Built in Rectifying Sensor to ensure neatly reeling electrode foil after pressing |
| Compressed air |
0.5-0.8MPa Compressed air required (Air compressor is not included)
Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
|
| Rolling Unit Dimensions |
Rolling Machine: 1500mm(L) x600mm(W) x 1300mm(H) |
| Weight |
700KG |
| Warranty |
One-year limited warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance are not covered by warranty
|
| Environment Requirement |
The recommended ambient temperature is 25±3°C, humidity 30-90RH, no vibration and electromagnetic interference |
| Application Notes |
Never roll materials with hardness >50HRC
Must use ace tone to clean and dry rollers' surfaces after each use to avoid rusting
Roll and press the electrode sheet multiple times to condense the slurry.
Apply antitrust if machine were to be unused for a long period of time
Sample testing is available upon customer's request
Pre-installed Edge Position Controller (EPC) used for controlling the edge position of film in the process of winding
|
