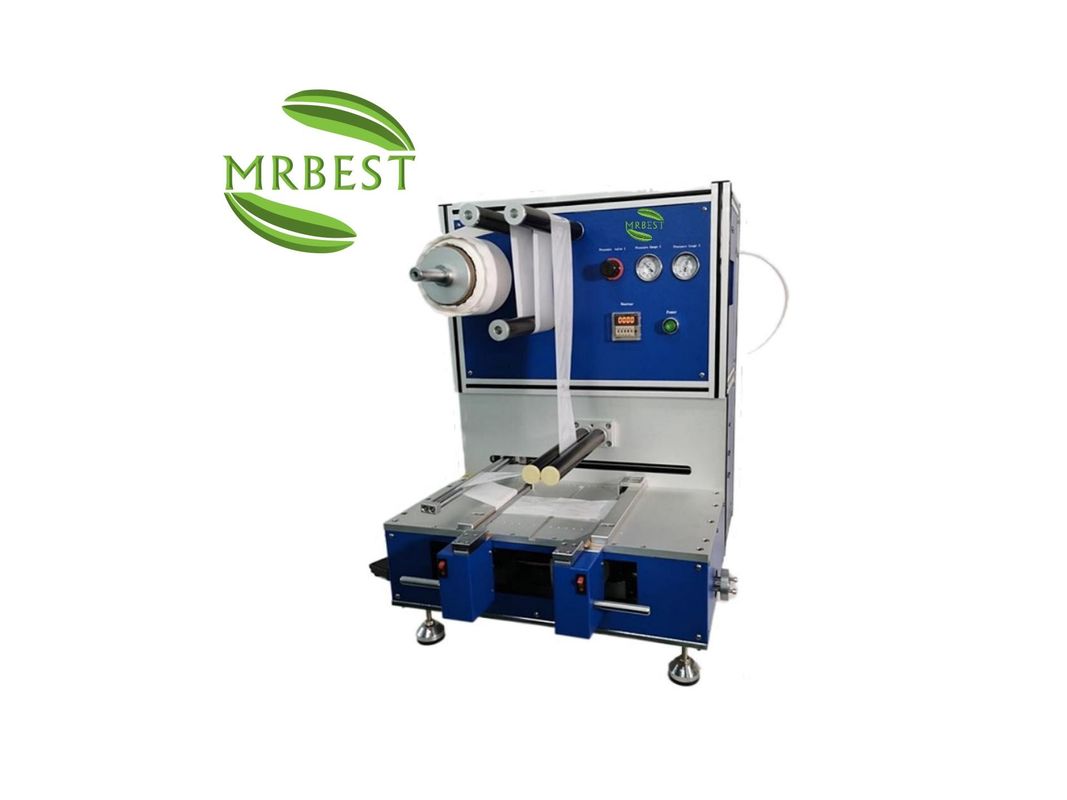

Semi Auto 200W Pouch Cell Assembly Battery Electrode Stacking Machine

Semi-Auto Pouch Cell Stacking Machine for Battery Electrode Stacking


Model: MR-BDP200-B

It is suitable for the stacking process of battery cells. The positive and negative electrodes and the separator are Z-shaped stacked. It is a device that can be used in the process of lithium-ion battery stacking. The Pouch Cell Equipment adopts automatic tension control system of separator. The air cylinder drives the separator to move left and right to realize Z-fashion stacking. The cantilever design is easy to operate. Compared with the manual stacking machine, the equipment has the advantages of high stacking efficiency, good stacking uniformity and wide range of applicable battery size. It is an ideal choice for R&D sample production and small batch trial production equipment.

Main Features:

* The adjustment, operation and maintenance of the machine are simple and easy;

*Suitable for large size range of electrodes;

*Semi automatic stacking and weighing tension control system

*Automatic count and return to zero function

*Automatic maintenance of last used parameter state function after power failure and not in use

*The whole machine is suitable for a wide range of battery sizes

*Foot switch is used to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency, with digital display timer

*Table type, can be placed on the ordinary desktop, the appearance is exquisite and beautiful;

Technical Specifications

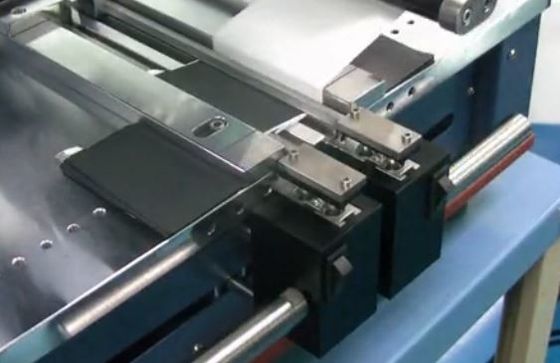

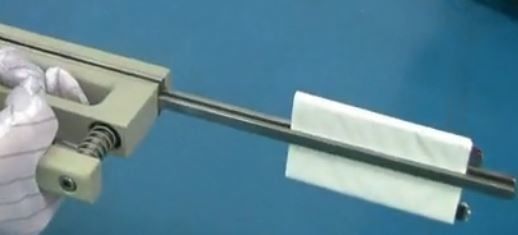

Picture for Reference

MRBEST Factory Show
