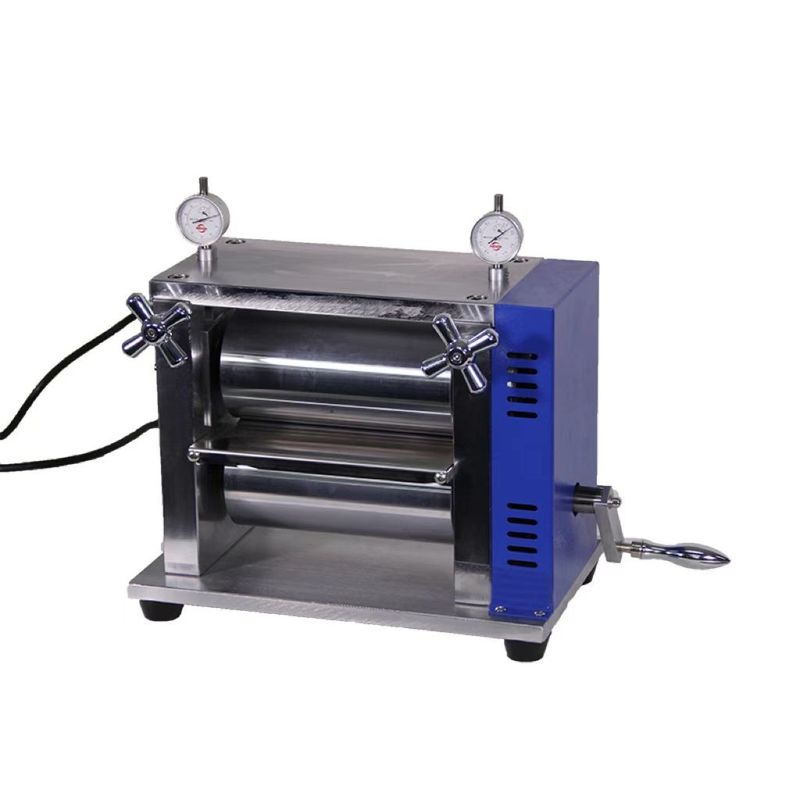

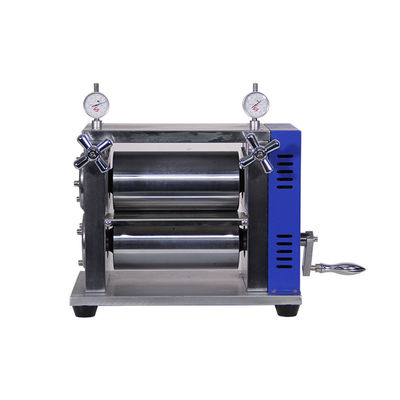

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering
 Manual Rolling Press Machine For Lithium Battery Electrode Calendering  Manual Rolling Press Machine For Lithium Battery Electrode Calendering  Manual Rolling Press Machine For Lithium Battery Electrode Calendering  Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Large Image :   Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-SG100L
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now Chat Now

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Description
Product Name: Manual Roller Press Machine Roller: Dia 96 X W100mm, Other Width Available
Roller Hardness: >HRC62 Pressing Thickness: 0~2mm Adjustable
Rolling Press Accuracy: ≤±0.005 Rolling Press Width: 100mm Optional 150mm, 200mm, 250mm, 300mm
Product Dimensions: 350 Mm(L) X 240mm(W) X 350mm(H) (14" X 9.5" X 14") Weight: 45kg (100 Lbs)

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 0

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 1



Precision 4" (100mm) Width Manual Rolling Press Machine For Lithium Battery Electrode Calendering



Model: MR-SG100L



  • MR-SG100L Lab Roll Press Machineis a Manual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
  • This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed

Specifications



Model

4" Width(100mm) Manual Rolling Press Machine

MR-SG100L
Structure

1. Heavy duty steel frame, gears and handle

2. Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60)

with Cr electroplated coating

3. Dual micrometer for accurate thickness adjustment in the range 0 - 2mm Maximum
Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 60)

with Cr electroplated coating. With finish > 0.8

Rolling Press

Accuracy

 ≤±0.005

Rolling Press

Thickness

 0-2mm adjusted with Dial gauge

Rolling Press

Width

 100mm, Optional 150mm, 200mm, 250mm, 300mm, 350mm, 400mm

Product

Dimensions

 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")
Weight 45kg (100 lbs)



Application

Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use ace tone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Electrode Size

Original

thickness

Finished

Thickness

LiFePO4

double sides

 50mm W * 260mm L 0.205mm 0.09mm

LiMn2O4

double sides

 50mm W * 260mm L 0.205mm 0.09mm

Copper foil +Graphite

(single side)

 75mm W * 240mm L 0.09mm 0.04mm

Sample testing is available upon customer's request

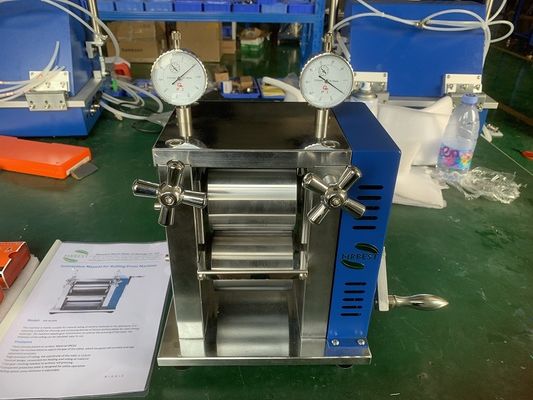

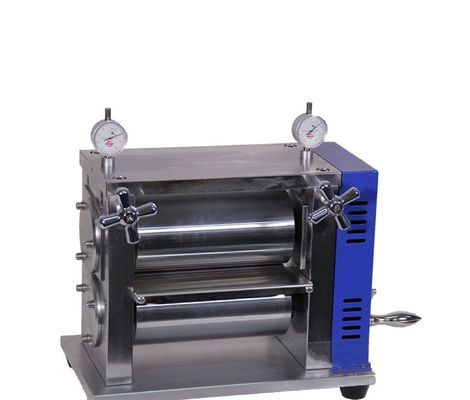

Picture for Reference



 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 2

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 3

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 4

 Manual Rolling Press Machine For Lithium Battery Electrode Calendering 5
