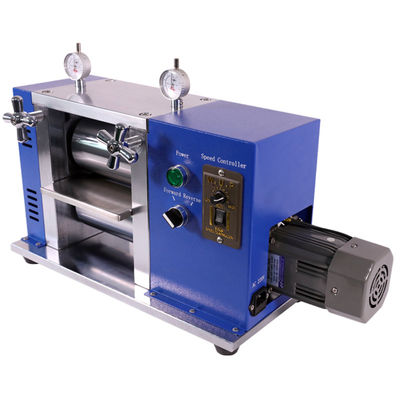

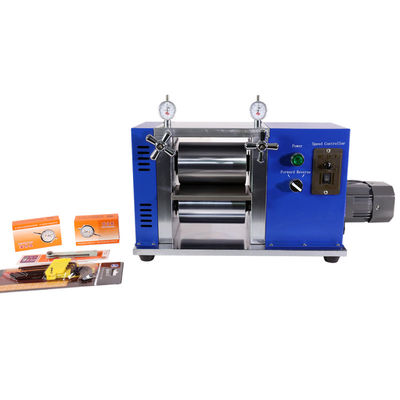

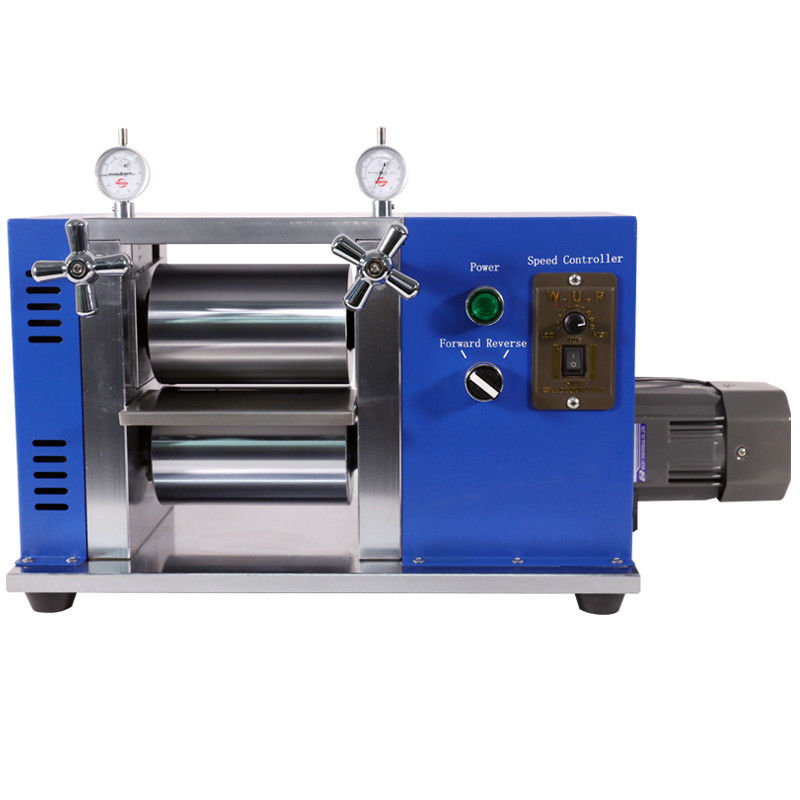

Electric Calender Roller Press Machine For Lithium Battery Electrode Rolling

1. Heavy duty steel frame, gears and handle

2. Φ96mm Dia. * 100mm width Rollers made from hardened tools steel (HRC >62) with Cr electroplated coating.

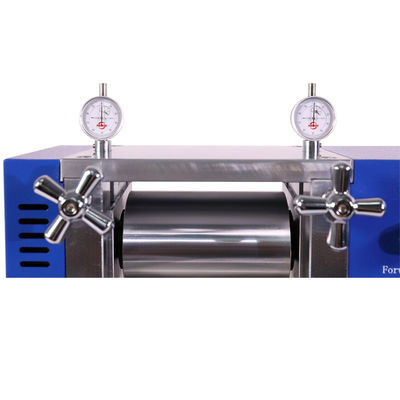

3. Dual micrometer for accurate thickness adjustment in the range 0-2mm Maximum

4. Equipped with a transparent protective plate, safe to use

Dimensions: 96mm Dia * 100mm W

Material: Made from hardened tool steel (HRC >62)

With Cr electroplated coating. With Finish >0.8

100mm

Optional for 150mm, 200mm, 250mm, 300mm & 400mm

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1. Must use ace tone to clean and dry rollers’ surfaces after each use to avoid rusting.

2. Coated Rust-proof oil if machine were to be unused for a long period time

3. The minimum thickness of the rolled sheet should depend on the physical property of the materials.
