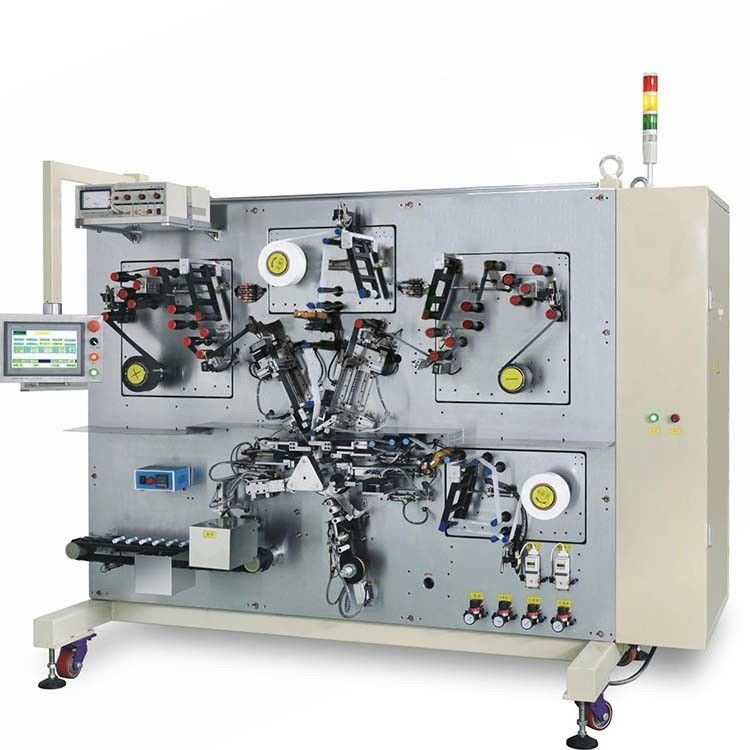

Automatic Winding Machine for 60130 Supercapacitor and Cylinder Battery Winding
Model: MR-AWM650
It is a fully automatic winding machine for lithium batteries supercapacitor, which is with the function of monitoring winding length and diameter. It is capable to carry out chamfer, hole punching, short circuit testing, it features stable working status and technology guarantee.
Key Features
• Manually feeding material, automatically winding, tape sticking and discharging.
• High winding precision, cathode & anode electrode alignment, separator & electrode alignment tolerance within ±0.5mm. Diviation error of electrode and separator is less than ± 0.5mm during winding.
• The electrode cutting edge is flat and smooth, and the cutter is made of aluminum alloy to ensure the sharp edge.
• The separator surface is flat and smooth, no separator misalignment and no burrs after punching holes.
• It owns short circuit testing function.
• Separator tension can be set, automatic correction.
• It is equipped with brush dust removal function.
• Monitoring for winded diameter.
Technical Parameters
| Model |
Automatic Winding Machine for 60138 Supercapacitor MR-AWM650 |
| Voltage |
AC380V |
| Compressed air |
0.45~0.6MPa |
| Stacking length |
1000~6000mm, tolerance within ±2mm (accorfing to different material thickness and length, maximum external winding diameter 100mm) |
| Winding speed |
For electrode L5000 * W100mm, 4~5 pcs/min output. It isaccording to different winding requirement. |
| Winding pin |
φ8~φ20mm optional according to different requirement |
| Winding diameter |
φ25~70mm, external diameter tolerance within ±0.8% |
| Working surrounding |
No corrosive gas and liquid, no explosive gas |
| Working temperature |
20~30℃ |
| Relative humidity |
30~55% HR |
| Weight |
5500kg |
| Material |
Feeding method |
Single piece length(mm) |
Width(mm) |
Thickness (μm) |
Max external diameter(mm) |
Inner diameter(mm) |
| Dimension range |
Dimension range |
Tolerance |
Dimension range |
Tolerance |
| Cathode electrode |
Roll |
600~6000 |
80~160 |
±0.1 |
100~320 |
±10 |
400 |
75.8 |
| Anlde electrode |
Roll |
600~6000 |
80~160 |
±0.1 |
100~320 |
±10 |
400 |
75.8 |
| Separator |
Roll |
80~160 |
±0.1 |
16~50 |
±10 |
350 |
75.8
|
