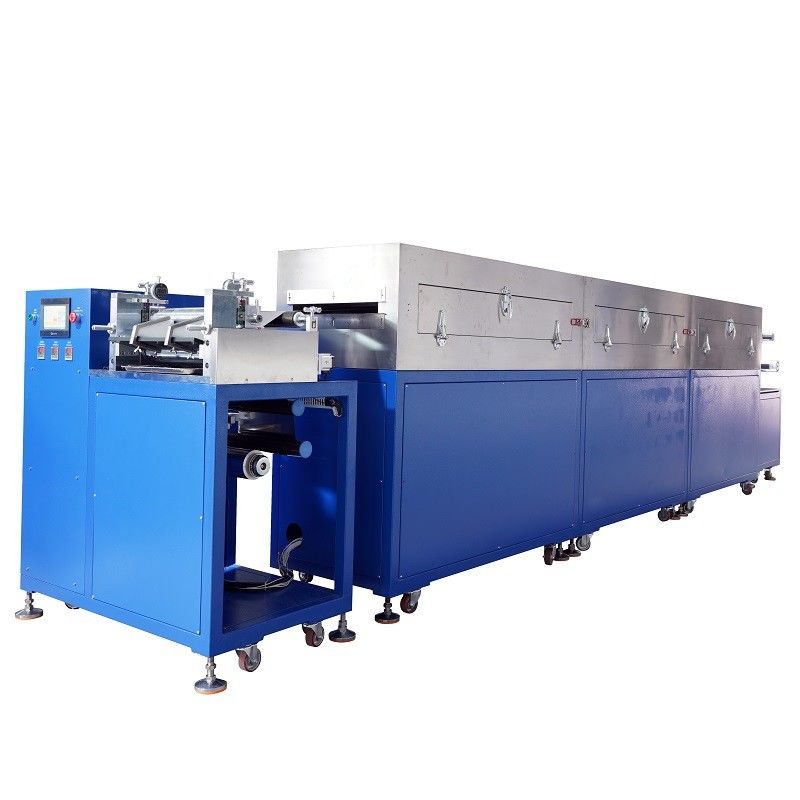

Supercapacitor Equipment Lithium Battery Transfer Coating Machine for Battery Electrode Making
Model: MR-SY300-3J
MR-SY300-3J is a film transfer coating equipment with three rollers, which is mainly used in continuous and intermittent coating film for battery electrode produce or production line. It can be widely applied in the surface coating of various substrates, especially in lithium-ion battery industry. This machine is designed in accordance with the convenience of researchers, and meets the requirements of coating precision and consistency. It owns the excellent drying function, and also is an ideal choice for lithium-ion battery, super capacitor, nickel battery and other battery research and development and small trial production.
Features
● Each part of drying cabinet temperature can be controlled independently.
● This machine is the modular design, which is easier to operate.
● Continuous and intermittent coating can be changed freely.
● Tension control, it’s equipped with correction device.
● Lower & upper blowing heating oven with excellent drying.
● Comma coating blade metering, with precision adjustment mechanism to obtain high coating accuracy.
● Gap tracking system for double side coating.
● PLC control, high automation.
Specifications
| Name |
Lithium Battery Transfer Coating Machine MR-SY300-3J |
| Coating method |
3 rollers transfer coating |
| Coating mode |
Continuous & intermittent coating |
| Roller width |
330mm |
| Effective coating width |
280mm |
| Substrate thickness |
Aluminium foil: 8~30μm
Copper foil: 8~30μm
|
| Coating speed |
0~0.5m/min, depending on the heating |
| Single side coating thickness after drying |
20-200μm |
| Heating temperature |
RT~150℃ |
| Heating oven |
1m length ,customized length is available |
| Coating size accuracy |
L≤±1mm, W≤±0.5mm |
| Voltage |
3PH 380V 50Hz |
| Total power |
10KW |
| Compressed air |
0.5~0.7Mpa |
| Dimension |
L6500*W1300*H1500mm |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
