61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape

Large Image : 61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Model Number:	PLIB-NTA4
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Negotiable
Packaging Details:	Standard Export Carton Packing
Delivery Time:	3-15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000000 sets per month

Contact Now

61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape

Description

Name:	4mm Width Nickel Tab With Adhesive Polymer Tape	Material:	Nickel 99.99%
Width:	4mm	Length:	61mm
Thickness:	0.09mm In Aluminum Tab/ 0.28mm In Aluminum Tab With Adhesive Polymer Tape	Max. Loading Current:	3A
Highlight:	4mm Nickel Battery Tab , 61mm Nickel Battery Tab

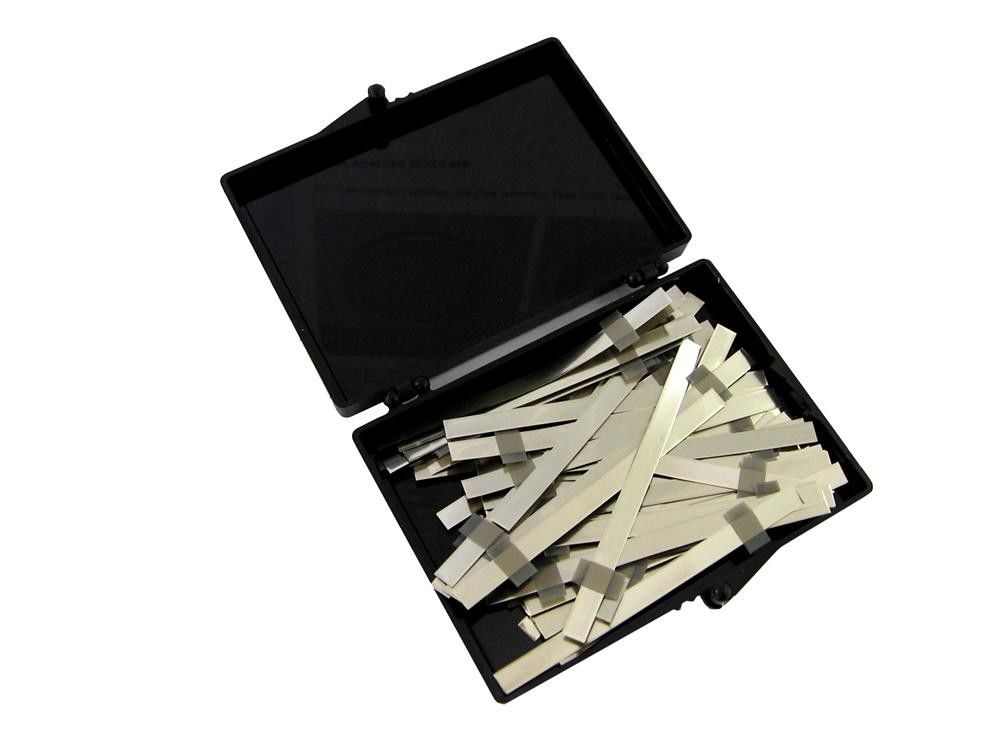

4mm Width Nickel Tab with Adhesive Polymer Tape as Negative Terminal for Pouch Cell, 50pcs/Box

61mm Length 4mm Width Nickel Battery Tab With Adhesive Polymer Tape 0

4mm Wide Nickel Tabs for use as the Negative Terminal of Polymer Li-ion Batteries 50pcs/Box

Specification

Material	Nickel 99.99% Adhesive Polymer Tape on the tab allows for immediate hot sealing (horizontal polymer strip is made of modified polypropylene (PP) and polyethylene naphthalate (PEN))
Length	61mm
Width	4mm
Thickness	0.09mm in Aluminum Tab
Thickness	0.28mm in Nickel Tab with Adhesive Polymer Tape (9.0 mm L * 5.2 mm W)
Max. Loading Current	3A
Net Weight	160mg/pcs
Gross Wight	18g (Tabs with Box)
Application	1. Connect to cathode current collector as polymer battery positive terminal 2. Suggested Sealing Method: (parameter below may vary from case to case) - Soft type heat-sealing blade (Blade with rubber, see MR-SFZ200) - 180-200C for upper blade - 160-180C for lower blade - 40PSI (0.3Mpa) - 3 seconds heating time Adhesive Polymer Tape on the tab allows for immediate hot sealing
