CR2032 SS316 Coin Cell Battery Case Button Cell Battery Storage Case

Large Image : CR2032 SS316 Coin Cell Battery Case Button Cell Battery Storage Case

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Model Number:	CR2032
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Negotiable
Packaging Details:	Standard Export Carton Packing
Delivery Time:	3-15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000000 sets per month

Contact Now

CR2032 SS316 Coin Cell Battery Case Button Cell Battery Storage Case

Description

Name:	CR2032 Coin Cell Cases	Shape:	Button
Material:	SS316	Battery Size:	20 Mm *3.2 Mm
Sealing Gasket:	PP	Full Set Include:	Positive Case, Negative Case, Spring And Spacer
Highlight:	SS316 Coin Cell Battery Case , SS316 CR2032 Storage Case , CR2032 Button Cell Battery Storage Case

CR2032 Coin Cell Cases for Battery Research

CR2032 SS316 Coin Cell Battery Case Button Cell Battery Storage Case 0

CR2032/ CR2025/ CR2016 button cells cases, made of stainless steel 304 or 316 with PP sealing O-ring

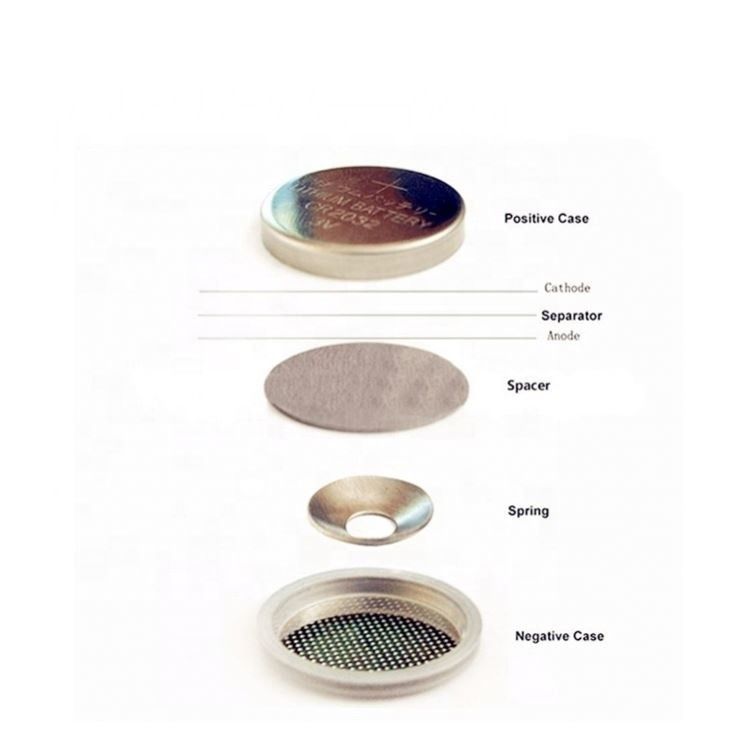

1 set include positive case, negative case, conical spring and spacer.

Dimensions (Dia x Height)	20 mm x 3.2 mm
Weight	1KG
Material	Casing: SS304or SS316, please choose according to your need. Sealing Gasket: PP The thickness of the SS304/316 for both anode and cathode case is 0.25 mm +/- 0.02 mm.
Application Note	After perfectly crimping, the External Height should be around 3.0mm. The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm. Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs, and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)
Model Choose	CR2032/ CR2025/ CR2016

Application:

It is excellent for developing new rechargeable batteries and battery electrodes

Coin Cell Case Suit
Product	Specification	Material	Picture
Coin Cell Case (Anode/ Cathode Case)	CR/LIR 2032	Stainless Steel SS304 or SS316
	CR/LIR 2025
	CR/LIR 2016
Spring	Conical Spring
Spring	Wave Spring
Spacer	15.80.5mm 15.81.0mm
