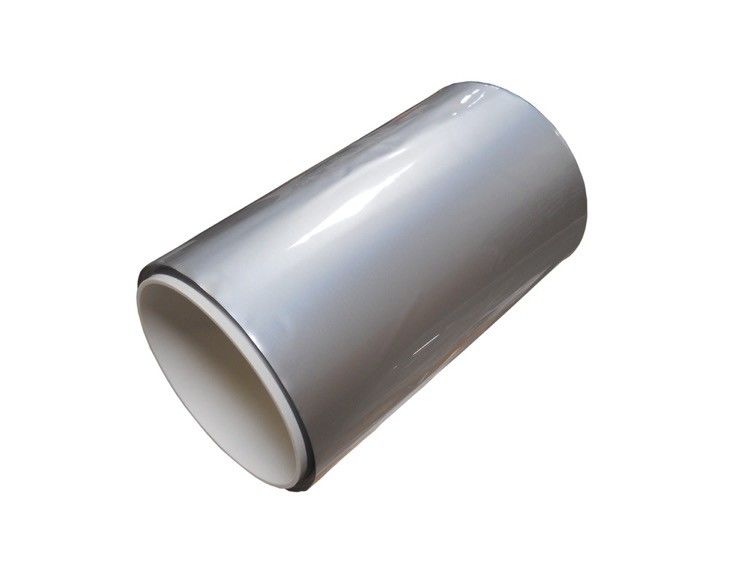

Mat Finish Aluminum Laminated Film For Pouch Cell Case

Mat Finish Aluminum Laminated Film For Pouch Cell Case
Mat Finish Aluminum Laminated Film For Pouch Cell Case

Large Image :  Mat Finish Aluminum Laminated Film For Pouch Cell Case

Product Details:
Place of Origin: China
Brand Name: MRBEST
Model Number: ALF40025
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Negotiable
Packaging Details: Standard Export Carton Packing
Delivery Time: 3-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000000 sets per month
Contact Now

Mat Finish Aluminum Laminated Film For Pouch Cell Case

Description
Name: Aluminum Laminated Film For Pouch Cell Case Thickness: 115μm±5%
Width: 400mm Length: 25m
Surface Quality: Mat Finish Molding Depth: < 8.0mm
Highlight:

Mat Finish Aluminum Laminated Film

,

Mat Finish Aluminum Laminated Film

Aluminum Laminated Film for Pouch Cell Case, 400mm W x 25 m L x 0.115 mm T

Mat Finish Aluminum Laminated Film For Pouch Cell Case 0

Mat Finish Aluminum Laminated Film For Pouch Cell Case 1





This aluminum laminated film (115 um ) is used as a casing material for the polymer Li-Ion battery.



Specifications
Layers from outside (Shiny) to the inside (Mat) Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) ( Melting point: ~223ºC)
Adhesive (Polyester-polyurethane): 4-5 g/m2 (Melting point: 150ºC )
Aluminum foil (JIS A8079,A8021): 0.040mm (+-0.004mm) (Inside) (Melting Point: ~660ºC)
Adhesive (Urethane-free Adhesive): 2-3 g/m2 (Melting Point: ~100ºC)
Polypropylene: 0.040mm (+-0.004mm) (Melting Point: ~130ºC)
Thickness: 115μm±5%
Width 400mm
Length 25 meter
Surface quality Mat finish
Fish Eye 2mm or less in diameter (clear),1mm or less in diameter (colored)
Molding Depth < 8.0mm
Electrical Insulating Good
Hot Sealing Condition 180-190°C
Moisture Vapor / O2 Transmission Rate 200ppm / 5 years
Laminate Strength Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm
Heat Seal Strength More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by MRBEST's heat sealing
equipment MR-SFZ200 and MR-YF200
Solvent Retention Less than 5mg/m2
Appearance Within the sample of the limit
Slip Factor CPP/CPP less than 1.0



Mat Finish Aluminum Laminated Film For Pouch Cell Case 2
