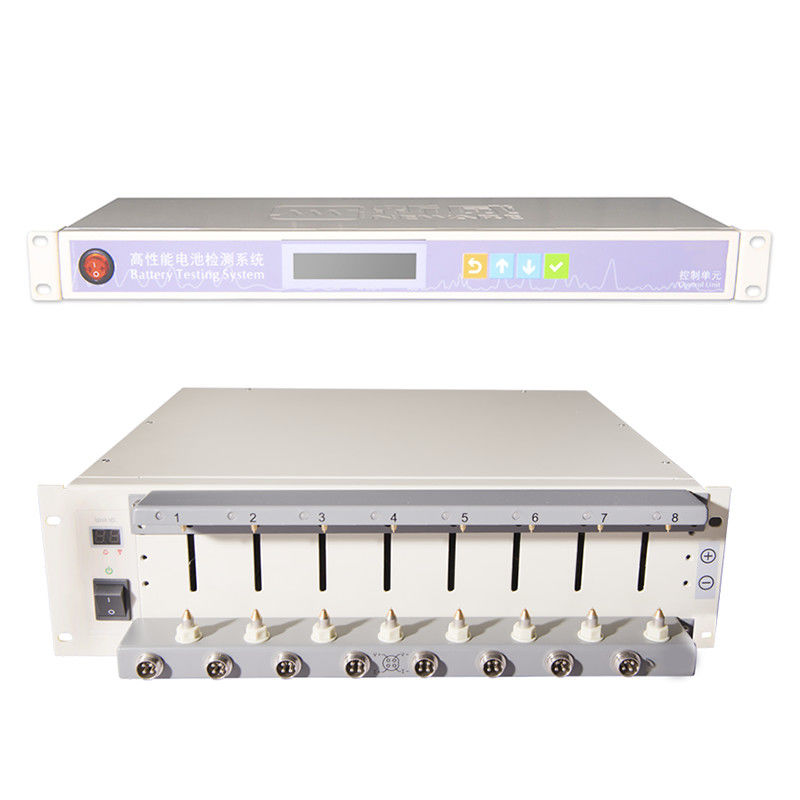

5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode

5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode
5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode

Large Image :  5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: CT-4008T-5V6A/ 5V12A
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode

Description
Name: 5V6A/ 5V12A Battery Tester Per Channel Current Range: Range 1: 5 MA~1 A; Range 2: 30mA~6A; Range 3: 60mA~12 A;
Channel Features: Constant Current Source And Constant Voltage Source With Independent Pairs Of Closed-loop Structure Channel Control Mode: Independent Control
Per Channel Voltage Range: 25mV~5V Single-channel Maximum Output Power: 60W
Highlight:

5V 6A Battery Tester Equipment

,

5V 12A Battery Tester Equipment



BTS-4000 Series 5V6A/ 5V12A Battery Tester for Cylindrical Battery, Pouch Battery, Super Capacitor, etc



5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 0



Model: BTS-4000 Series 5V6A/ 5V12A Battery Tester



BTS-4000 series entered into market in the year of 2008. Now it is one of the most successful and most popular battery testing system in China and World. Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.

Due to the rapid data acquisition frequency, BTS-4000 could be applied to super capacitor or EDLC (Electronic Double Layer Capacitor) test. Through our advanced software, the capacitance, DCIR(Direct Current Internal Resistance) could be easily calculated.

5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 1

Born for Test

Specialized in testing 18650/26650/21700 Cylindrical Battery, Pouch Battery, Super Capacitor, etc



What's the 5V6A/ 5V12A battery tester's range?



5V6A
Range 1: 100mA
Range 2: 3A
Range 3: 6A

5V12A
Range 1: 1A
Range 2: 6A
Range 3: 12A



How to understand the triple range for battery tester?

If you have 8 channels 5V6A battery tester with triple range.There will be triple range as below:
Range1: 0.5mA~100mA; Range2: 100mA~3A; Range3: 3A~6A.
Example: Using 50mA current to charge/discharge, the actually current should not be 50mA, it should has deviation value base on the range. If you have older 5V6A tester which has single range, so the output current will be 47mA~53mA. It has 3mA deviation value (3mA=6000mA*0.05%); If you have triple range 5V6A battery tester, so the output current will be 49.95mA~50.05mA.(The 50mA current output in the first range). It has 0.05mA deviation value (0.05mA=100mA*100mA). It highly improve the accuracy when you set different current.

The same with 5V12A or other multi range Neware battery tester.


How to understand the minimum discharge voltage for battery tester?

As to Standard model for 5V6A/ 5V12A Battery Tester, they has standard minimum discharge voltage as below:

5V6A: 1.0V (by using cylindrical clamp); 1.5V (with 2.0m length of testing cable)
5V12A: 2.0V (by using cylindrical clamp); 2.5V (with 2.0m length of testing cable)

Need lower minimum discharge voltage? Don't worry, MRBEST still can do this. MRBEST special power supply to support down to 0V~


How to understand the fixture of battery tester?

MRBEST offer various different clamps to meet the different batteries, so our user can easilier to connect your battery and focus on battery testing.
As to 5V6A & 5V12A battery tester, they have same clamps for cylindrical clamps, air-plug(connect aligator clamps or polymer clamps). The cylindrical clamp has adjustable height. You just use the straight screwdriver to adjust height, even use a coin. Wonderful, right?

Various types of batteries to be test

Different clamps can be supported.

* Coin cell clamps

* Cylindrical holder

* Pouch Clamps

* Alligator Clamps

* Ring nose connector

5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 2

Easy and convenient to check testing data, help you analysis data quickly!
(Voltage, Current, Capacity, DCIR, HPPC, Cycle Life, etc. )


5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 3



Not only the cylindrical battery can be test, but also tester can test the pouch battery.



5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 4



Special design fan, to make sure all tests are good. Prevent over high temperature.



5V 6A / 5V 12A Battery Tester Equipment Independent Control Mode 5
