5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series
5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series

Large Image :  5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: CT-4008T-5V10mA/5V20mA/ 5V50mA
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

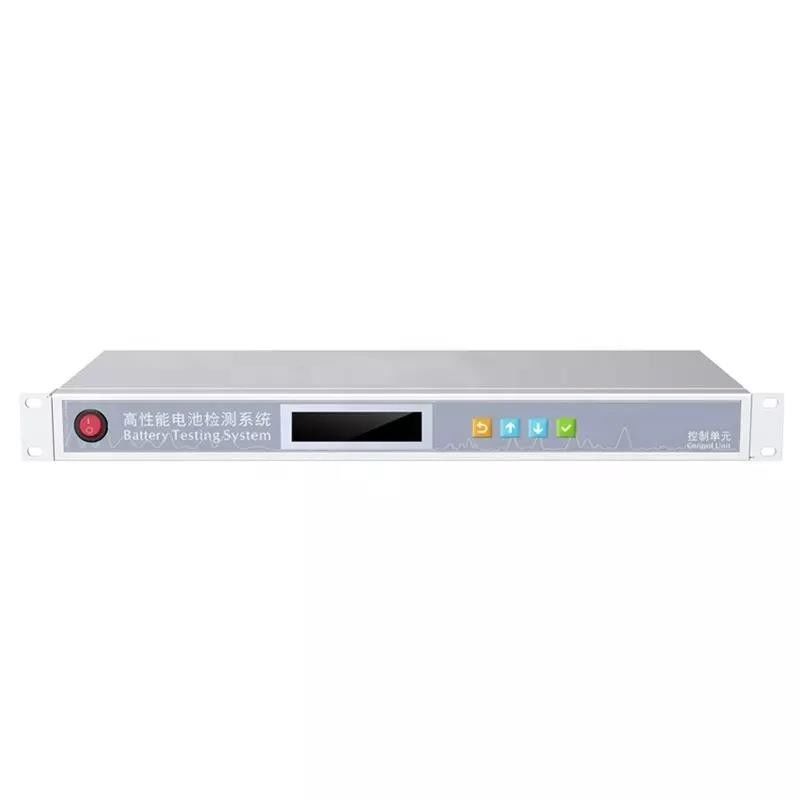

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series

Description
Name: BTS-4000 Series 5V10mA 5V20mA 5V50mA Battery Tester Per Channel Current Range: Range 1:5μA ~ 1 MA; Range 2: 1mA ~ 25mA; Range 3: 25 MA~50mA
Channel Features: Constant Current Source And Constant Voltage Source With Independent Pairs Of Closed-loop Structure Channel Control Mode: Independent Control
Per Channel Voltage Range: 25mV~5V Single-channel Maximum Output Power: 0.25W
Highlight:

5V 50mA Battery Testing Equipment

,

5V 20mA Battery Testing Equipment





BTS-4000 Series 5V10mA/ 5V20mA/ 5V50mA Battery Tester

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 0



Model: CT-4008T-5V10mA/ 5V20mA/ 5V50mA



BTS-4000 series entered into market in the year of 2008. Now it is one of the most successful and most popular battery testing system in China and World. Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.

Due to the rapid data acquisition frequency, BTS-4000 could be applied to super capacitor or EDLC (Electronic Double Layer Capacitor) test. Through our advanced software, the capacitance, DCIR(Direct Current Internal Resistance) could be easily calculated.

Smaller, More Powerful

Higher Accuracy. More Cost-effective. We believe it can improve your battery test.

Triple Range

Multi range improve your test accuracy! Automatic switched according to the input current value.


CT-4008T-5V10mA-164
Range1: 5μA~1mA; Range2: 1mA~5mA; Range3: 5mA~10mA; Accuracy: 0.05% FS
CT-4008T-5V20mA-164
Range1: 5μA~1mA; Range2: 1mA~10mA; Range3: 10mA~20mA; Accuracy: 0.05% FS
CT-4008T-5V50mA-164
Range1: 5μA~1mA; Range2: 1mA~25mA; Range3: 25mA~50mA; Accuracy: 0.05% FS


High Accuracy Battery Cycler

Eight-channels battery charge and discharge tesing system


5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 1

Multi Channels can be Supported!

Neware design the practical rack that customer can put the tester in this rack at the best location. (Maximum 20 set of mA Neware battery testers can be put in one rack )

Different Batteries can be test

* Coin Cell
* Three-electrode System
* Flow Battery
* Lithium-Air Batteries
* Sodium-ion Battery
* Li--Sulfur Battery
* Solid-State Battery
* Other types Batteries
5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 2

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 3

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 4

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 5

5V 10mA / 20mA / 50mA Battery Testing Equipment 8 Channels BTS-4000 Series 6





Tag:

Lithium Battery Tester Analyzer,

Battery Tester Equipment,

Battery Charge Discharge Test Equipment
