Desktop Battery Research Equipment 100W Pouch Cell Stacking Machine

Large Image : Desktop Battery Research Equipment 100W Pouch Cell Stacking Machine

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MR-BDP200-A
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Desktop Battery Research Equipment 100W Pouch Cell Stacking Machine

Description

Product Name:	Pouch Cell Stacking Machine	Stacking mode:	Z Fashion
Max separator feeding diameter:	φ250mm	Fixed Travel Distance:	300mm
Applicable electrode Size:	Length:20～200mm Width: 20～200mm Thickness: Within 18mm	Travel Cycle:	1 - 9999 Cycles
Power:	100W	Working Voltage:	AC110V-220V 50/60Hz
Highlight:	Battery Research Equipment 100W , Desktop Battery Research Equipment , 100W Pouch Cell Stacking Machine

Lab Manual Lithium Battery Stacking Machines for Pouch Cell Electrode Stacking

Model: MR-BDP200-A

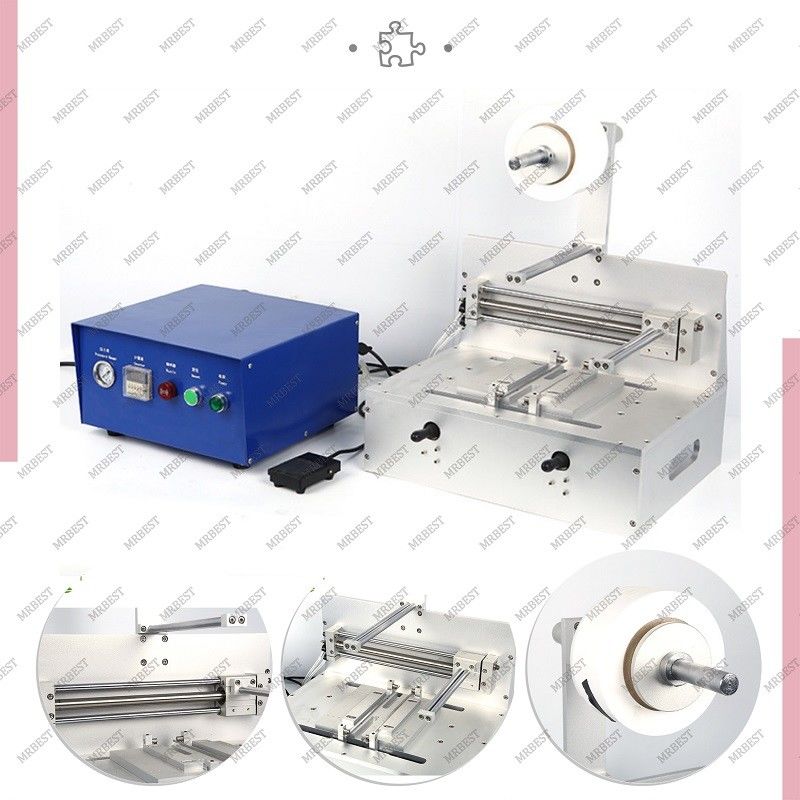

MR-BDP200 is a desktop semi-auto stacking machine, which is used for stacking pouch cell anode, cathode and separator by "Z'' shape to make a pouch battery core. The stacking size is adjustable from L20~200mm to W20~200mm.

Main Features:

● Stacking size is adjustable.

● Counter is designed.

● Desktop design, compact size.

● Control part and working part split design, easy to operate.

Technical Specifications

Model	Pouch Cell Stacking Machine MR-BDP200
Working Voltage	AC110/220V optional
Stacking Size	L(20~200)mm x W(20~200)mm
Separator Roll Diameter	Max φ250mm
Traveling Stroke	300mm
Air Source	0.5~0.7Mpa
Operation Mode	Semi-auto
Dimension	Control part: L650 * W400 * H700mm Working part: L200 * W200 * H380mm
Weight	60kg
