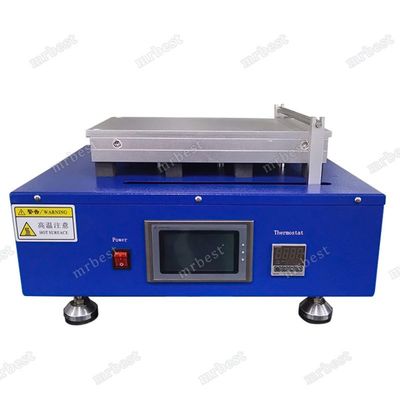

Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight

Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight
Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight

Large Image :  Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-DTM260
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight

Description
Name: Laboratory Doctor Blade Coater Doctor Blade: 100mm Fixed Width As Standard, Ajustable Width Optional
Coating Length: Max. 250mm Adjustable , Customizable Coating Speed: 0~100mm/s Adjustable
Heating Function: Bottom Heating, Max 200℃ Vacuum Pump: Built In Oil Free Vacuum Pump
Dimension: L500 * W310 * H200mm Weight: 40KG
Highlight:

Laboratory Doctor Blade Coater

,

Doctor Blade Coater 100mm/s



Laboratory Doctor Blade Coater with Bottom Heating



Laboratory Doctor Blade Coater 0 - 100mm/s Adjustable Speed 40KG Weight 0



Model: MR-DTM260



1. The MR-DTM260 Laboratory Doctor Blade Coater with Bottom Heating is used for varies kinds of materials coating.

2. It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.

3. The film coating machine is mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

4. One oil-less vacuum pump is included

5. New designed Touch Screen control make the operating more easy and simple





Specifications



Machine model

Laboratory Doctor Blade Coater with Bottom Heating

MR-DTM260
Source voltage AC110V-240V, 50/60HZ
Power 650W
Coating speed 0-100mm/s, Step-less transmission Accuracy: 10mm/sec
Advantages Supply with dry function, vacuum pump
Stroke length 10 - 250 mm adjustable by using Adjustable Position Switch
Platform

Aluminum alloy flat vacuum chuck

Vacuum Chuck Dimensions:

365mm(L) * 200mm(W)*30mm(T)
Slicker width 0-100mm, Ajustable Width Optional

Slicker adjustable

range

 0.01-3.5mm
Heating dry system RT-200°C, Digital temperature controller

Temperature control

accuracy

 ±1°C
Dimension 500*350*320mm
Weight About 40kg
Package size 790*540*600mm
Package weight 65kg
Warranty One Year limited warranty with lifetime support
Remark

1. One oil-less vacuum pump included

2. Heating system : Bottom Base Heating

Built in digital temperature controller with accuracy of +/-1°C.

Max. Heating Rate:10°C/min

Max. Heating Temp.:200°C

3. A 100mm width micrometer adjustable film applicator

Traverse Pusher is included for pushing the Film Applicator to ensure the constant coating speed



Our Advantages

1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
