Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line

Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line
Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line

Large Image :  Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MRBEST-Cylindrical Cell
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line

Description
Product Name: 18650 Cylindrical Cell Battery Assembly Line Application: For Battery Research
Suitable Battery: Cylindrical Cell Size: Accepted Customized Size
Manufacturer: YES Direct Factory: With Competitive Price
Highlight:

Li Ion Battery Manufacturing Machine

,

18650 Battery Manufacturing Machine

,

18650 Cylindrical Cell Assembly

18650 Cylindrical Cell Battery Assembly Line



Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line 0



18650 Cylindrical Cell Battery Assembly Line, designed for both research and factory labs, is suitable for the production of a wide range of cylindrical Li-Ion cells, including 18650, 26650, and 21700 formats.



18650 Cylindrical Cell Battery Assembly Line



1. Electrode preparation

Used to prepare the positive and negative electrodes, including machines for mixing, coating, pressing and drying the electrode materials and sheets.



2. Battery assembly

Used to assemble the positive and negative electrodes with the separator to form a battery cell, including machines for winding, welding, grooving and sealing the battery cases.



3. Electrolyte filling

Used to vaccum the battery case and fill electrolyte.



4. Formation and testing

Used to charge and discharge the battery cell to activate and stabilize cells and evaluate the performance of final batteries.



Cylindrical Cell Components

Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line 1

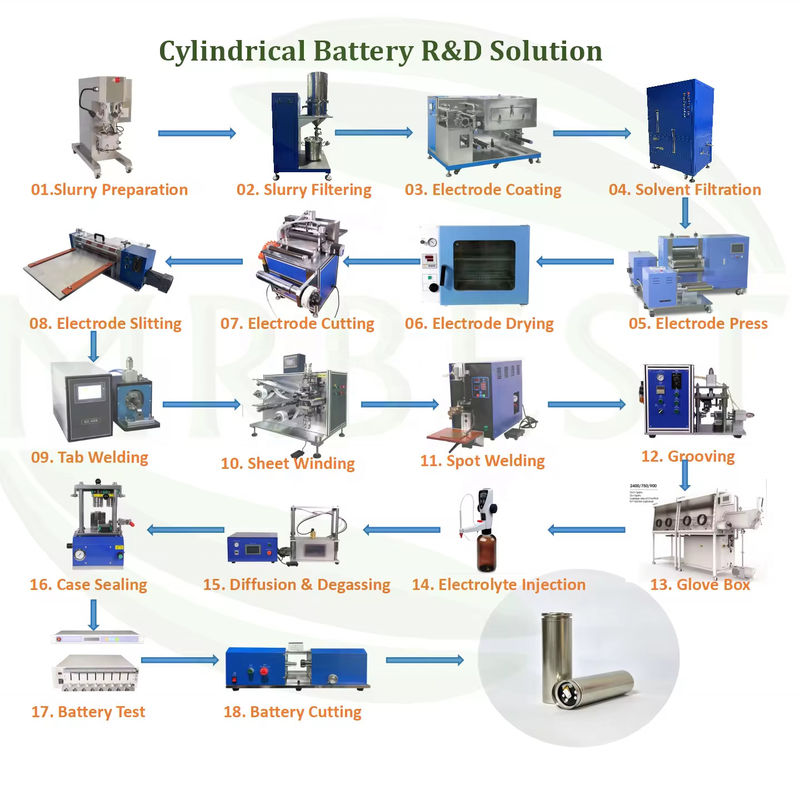

Flow Chart for how Cylindrical Cells are Assembled

Li Ion Battery Manufacturing Machine 18650 Cylindrical Cell Assembly Line 2

MRBEST Cylindrical Cell Battery Assembly Line Equipment and Process



No. Process Equipment Name
1 Raw material baking Vacuum Drying Oven with Tri-Level Shelf Heating Modules
2 Vacuum Mixing Large Planetary Vacuum Mixer with Vacuum Pump and Water Chiller
3 Slurry viscosity Test Digital Touch Screen Viscometer
4 Vacuum Mixing Turnover Bucket
(with Lifting Flame)
5 Magnetic De-Ironing Filtration Magnetic De-ironing Filtration System for Battery Electrode Slurry
6 Electrode Coating 3 Rollers Battery Electrode Intermittent Coating Machine
7 Waste Gas Treatment Solvent Processing System Waste Gas Treatment Equipment
8 Roll press Roll to Roll Pressure Controlled
Rolling Press Machine
9 Electrode Sheet Cross Cutting Lithium Battery Electrode Sheet Cutter Machine for Battery Big Electrode
Cutting after Coating Process
10 Electrode Sheet Slitting Battery Electrode Roll Slitting Machine
11 Sticking glue of lithium ion battery electrode Lithium ion Battery Electrode Piece Sticking Machine
12 Tab Welding Al Tab Ni Tag Ultrasonic Welding Machine
13 Electrode Winding Automatic Precision Winding Machine
14 Put the cell into the battery shell, and weld the negative electrode lug and the negative electrode shell with a spot welder Precision High Frequency Inverter DC double Pulse Spot Welding Machine
15 Short circuit tesing Short Circuit Tester
16 The battery shell is formed by rolling groove, which is convenient for sealing. Floor-stand Automatic Grooving Machine for Batch Processing of Cylindrical battery Castings
17 Cylindrical Cell Cap Laser Welding Laser Welding Machine
18 Filling the electrolyte into the battery Automatic Precision Electrolyte Injection Station for Cylindrical Cell Batteries
19 Sealing the cylindrical cell cases Automatic Cylindrical Cell Crimping Machine
20 Cell Formation and capacity testing 512 Channel Lithium Ion Battery Tester Equipment
21 Print numbers to cylindrical cells Continuous Small Character Ink Jet Printer
22 Remove the moisture from the battery production process to ensure the quality of the battery Dehumidification and Drying System
23 Vacuum pumping Monoblock Rotary-vane Vacuum Pump
24 Provide compressed gas for each battery production machine Helical Compressor



Our Advantages

1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
