20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine

20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine
20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine

Large Image :  20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-ZP200
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine

Description
Name: Pneumatic Battery Edge Folding Machine Folding Width: 2-11mm
Max. Folding Length: 200mm Compress Air Pressure Requirement: 0.5 - 0.7 MPa (Each Stroke Will Consume 0.09L Air )
Stroke Frequency: 9 Seconds Per Trial Max. Power Consumption: 20W
Highlight:

20W Lithium Battery Making Machine

,

Pneumatic Lithium Battery Making Machine

,

Pneumatic Battery Edge Folding Machine

200mm Pneumatic Battery Edge Folding Machine

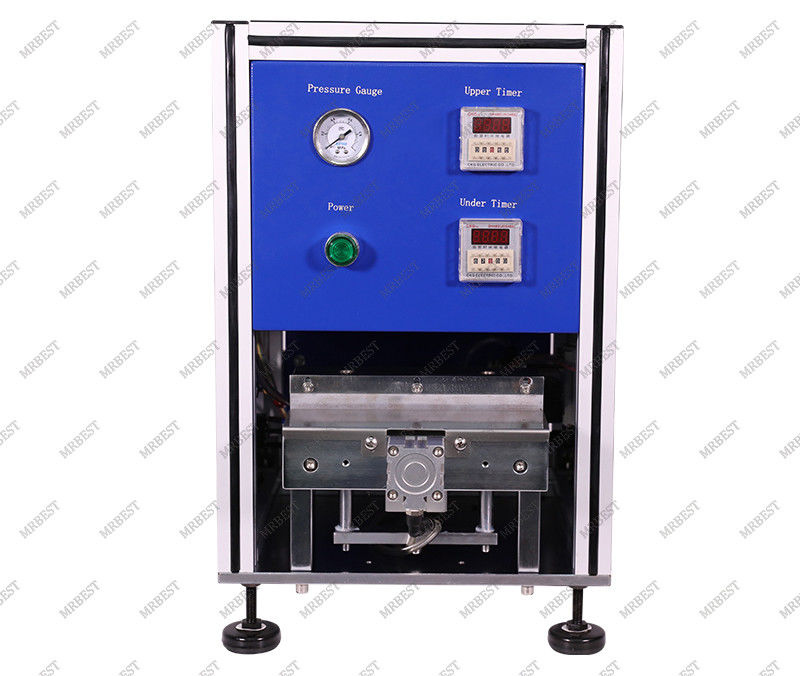

20W Lithium Battery Making Machine Pneumatic Battery Edge Folding Machine 0



Model: MR-ZP200



MR-ZP200 is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.



Features

1 Folding width can be adjusted for different battery.

2 Air pressure, speed can be adjusted.

3 Adopted foot switch, Reliable, convenient and quick

4 Small size, simple operation



Specifications



Model Battery Edge Folding Machine MR-ZP200
Max. Power Consumption 20W
Working Voltage 110 - 240VAC, single phase
Compress Air Pressure Requirement 0.5 - 0.7 MPa (Each stroke will consume 0.09L air )
Size Info (Folding Length)

Folding Width: 2-11mm

Max. Folding Length:200mm
Stroke Frequency ~9 seconds per trial
How to use this Tool Suite

When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below:

Step 1. Use the MR-QP200 trimming machine to cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing

Step 2. Use the MR-TP200 ironing machine to smooth the edge prior to the folding

Step 3. Use the MR-ZP200 folding machine to partially fold the edge

Step 4. Use the MR-TP200 ironing machine to smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.
Net Weight 31kg
Product Dimensions L320*W300*H420mm
Compliance CE Certificate
Warranty One Year limited warranty with lifetime support



Standard Package List



Item Qty
Battery edge folding machine 1 set
Power line (according to your requirements) 1 pcs
Foot pedal 1 pcs
socket head wrench 1 set
Operating manual (English) 1 book



Our Advantages



1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.

2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.

3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .

4. 1 year warranty plus lifetime technical support.

5.All the parts use on machine, in stock forever.

6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have

more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.

7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
