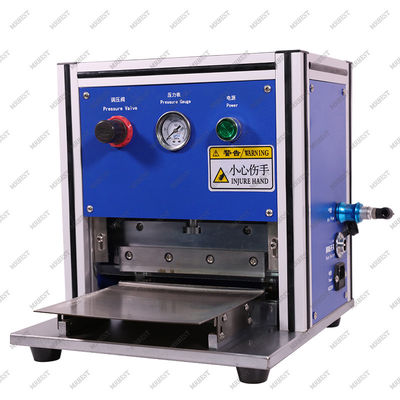

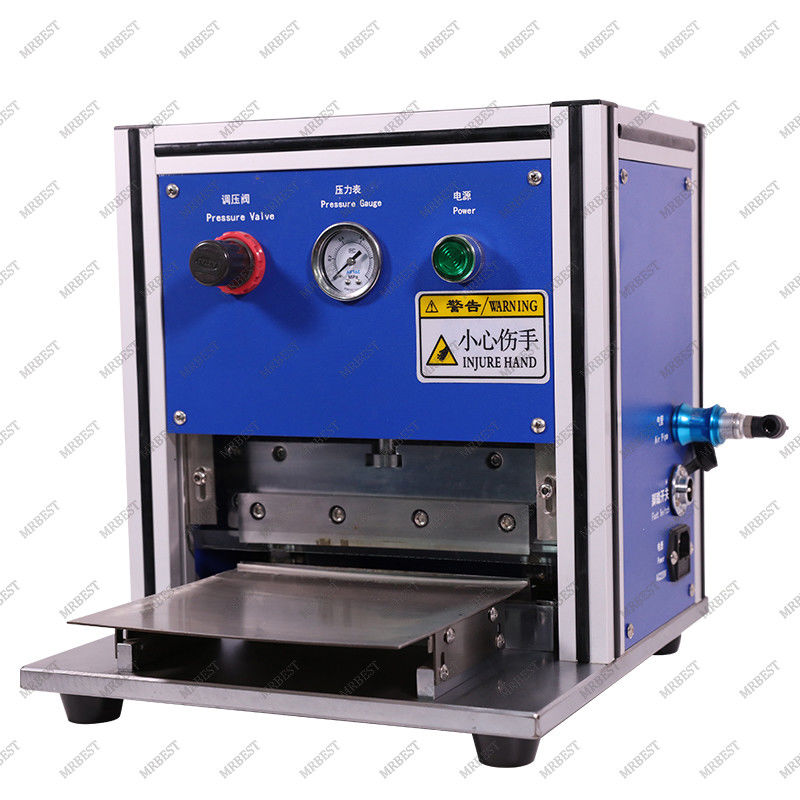

200mm Pneumatic Battery Edge Cutting Machine For Lab Pouch Cell
Model: MR-QP200
This battery edge cutting machine is mainly used for lithium polymer battery aluminum-plastic film trimming molding, and it can also be used for cutting off other soft materials.
Features:
1. It uses the silver linear slide group for guidance, high precision to ensure that the upper and lower cutting between the zero gap and long service life;
2. It uses plexiglass protective cover to prevent cut hand and cut the battery;
3. Cutting knife from top to bottom use of high-speed steel, with sharp blade;
4. Built-in pressure gauge, from which you can observe and accurately control the size of the trimming pressure
5. Cylinder control cutting edge of the battery edge cutting, easy to form automation, trimming width can be adjusted;
6. Air pressure and speed can be set to adjusted;
7. A product positioning tray, adjustable from top to bottom to facilitate the positioning of the battery;
8. Using foot switch, reliable, convenient and fast;
Specifications
| Model |
Battery Edge Cutting Machine MR-QP200 |
| Working Voltage |
110 - 240VAC, single phase |
| Compress Air Pressure Requirement |
0.5 - 0.7 MPa (Each stroke will consume 0.09L air ) |
| Size Info (Trimming Width/Length) |
Trimming Width: 2~8mm adjustable
Max. Trimming Length: 200mm
High-quality tooling steel blades.
|
| Stroke Frequency |
~10 seconds per trial |
| Cutter life |
1 million/grinding |
| Speed |
600 times / hour |
| Power |
100W |
| How to use this Tool Suite |
When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below:
Step 1. Use the MR-QP200 trimming machine to cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing
Step 2. Use the MR-TP200 ironing machine to smooth the edge prior to the folding
Step 3. Use the MR-ZP200 folding machine to partially fold the edge
Step 4. Use the MR-TP200 ironing machine to smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.
|
| Net Weight |
35kg |
| Product Dimensions |
L320x W180x H340mm |
| Compliance |
CE Certificate |
| Warranty |
One Year limited warranty with lifetime support |
Standard Packing List
| Item |
Qty |
| Battery edge cutter machine |
1 set |
| Power line (according to your requirements) |
1 pcs |
| Foot pedal |
1 pcs |
| socket head wrench |
1 set |
| Operating manual (English) |
1 book |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
