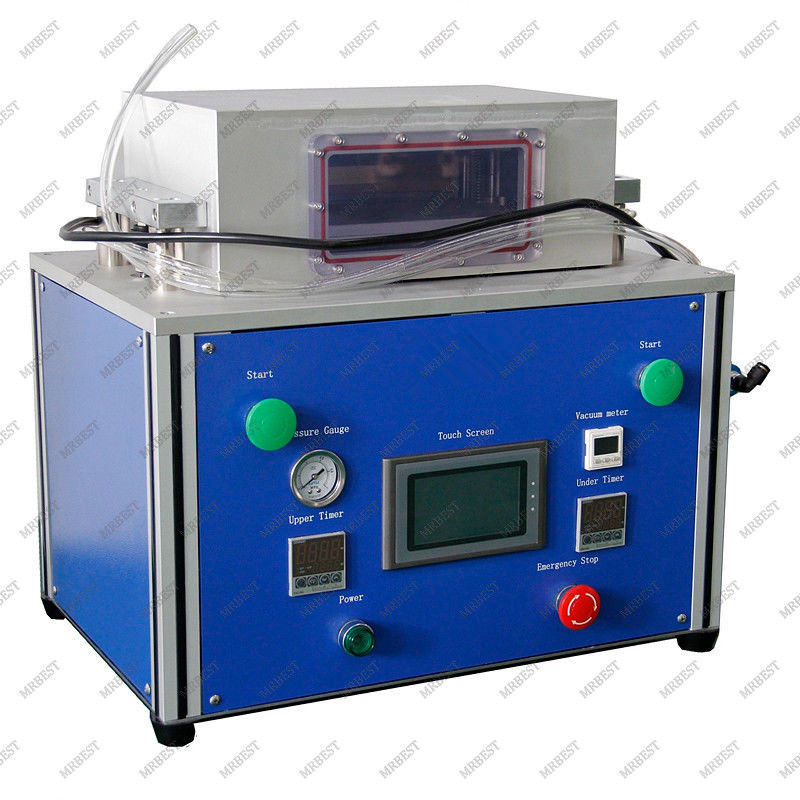

Battery Making Machine Battery Pouch Vacuum Sealing Machine
Model: MR-BFZ200
MR-BFZ200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.
Features:
1. Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.
2. The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.
3. Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements
4. With automatic puncturing function, waste recovery unit.
5. Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements
6. Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.
7. Easy to operate, beautiful appearance, small size, light weight.
Specification
| Model |
Battery Pouch Vacuum Sealing Machine MR-BFZ200 |
| Sealing head temperature |
RT-250℃,adjustable |
| Temperature control precision |
±1.5℃ |
| Heat sealing pressure |
0-7kg/cm2,adjustable |
| Heat sealing time |
0-99 second,adjustable |
| Sealing width |
5mm,adjustable |
| Vacuum degree |
-90Kpa ~ 0 adjustable (vacuum pump optional) |
| Voltage |
220V/50Hz |
| Power |
300W heat pipe,
heating when the power consumption of about 0.6KW
|
| Compressed air source |
0.5-0.7Mpa |
| Size |
L500mm*W500mm*H700mm |
| Head parallelism |
with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal |
| Air consumption |
about 0.2L compressed gas / each time |
| Pneumatic working speed |
≥ 180 times / h |
| Dimension |
515mm * 350mm * 505mm |
| Weight |
56kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
