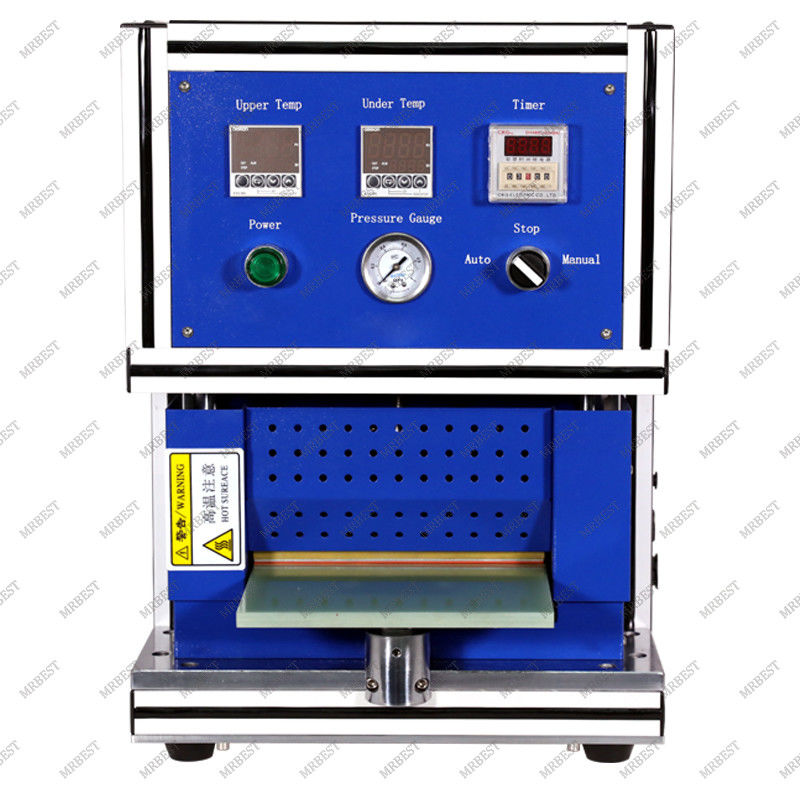

Battery Making Machine Pouch Cell Edge Sealing Machine
Model: MR-SFZ200
1. MR-SFZ200 Battery Heat Sealing Machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
2. The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.
3. It can prepare the pouch cell for the injection of electrolyte by sealing the side and top of the pouch cell with tab.
Features:
1. Unique safety protection and anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel.
2. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products.
3. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.
4. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing.
5. It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head.
6. The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
7. Small size, smooth and even seal marks, beautiful appearance of the edge seal; soft package heat sealing machine equipment.
Specification
| Model |
Pouch Cell Edge Sealing Machine MR-SFZ200 |
| Maximum seal length |
200 mm Max. (200mm~400mm can be customized) |
| Sealing Width |
5mm±0.4 (3～10mm can be customized) |
| Side sealing thickness |
60 - 300um (depending on the thickness of the aluminum film) |
| Thickness of top tab edge sealing |
200 - 700um (depending on the thickness of the aluminum film) |
| Heat sealing temperature |
RT～250℃ adjustable |
| Temperature accuracy |
±2℃ |
| Sealing time |
0-99s adjustable |
| Seal thickness accuracy (mm) |
The thickness difference between any two points is less than 15um |
| Safety device |
Equipped with protective device to prevent high temperature scald. |
| Operation mode |
The equipment has the function of automatic and manual operation. |
| Flexibility |
The equipment is easy to clean and replace the copper mold. |
| compressed air |
5～8kg/cm2 |
| Working speed of air compressor |
≥400 times/hour |
| Power Supply |
AC220V/110V, 50/60Hz |
| Power |
0.5KW |
| Dimensions |
L430x W330x H480mm |
| Equipment weight |
35Kg |
| Application Notes |
Suggested Sealing Parameter:
1. Upper Heating Blade Temperature: 200°C
2. Lower Heating Blade Temperature: 180°C
3. Pressure: 40 psi
4. Duration: 3 seconds
Please wait until both dies reached the Setting temperature and controller disable the Low temp. ALM, then begin to operate.
|
| Notes |
For completing the full sealing procedure, you may need the following combination:
- Compact Heating Sealer (suitable for top & side sealing with tab)
- Vacuum Sealing Machine (for pre-sealing in glove box after injection of electrolyte)
C. Final Vacuum Sealing Machine
(for vacuuming and second sealing with automatic puncture and degassing function)
If you don't want to spend too much budget on the sealing part, machine A plus B can also meet your basic sealing need
|
