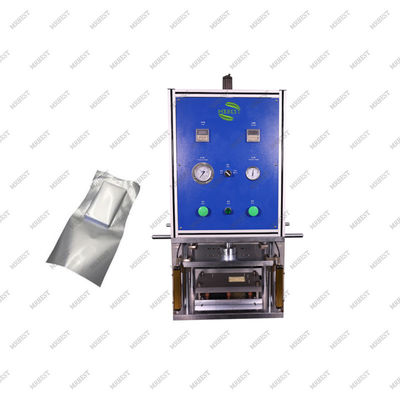

Battery Making Machine Pouch Cell Forming Machine
Model: MR-SCK300
MR-SCK300 Semi-auto Case/ Cup Forming Machine is used for preparation. It is a semi-auto pouch cell aluminum laminated films cup forming machine, the punching thickness is adjustable. The pouched case without crow’s feet and corner collapse. IR sensor, dual start buttons and protection cover are included for safety operation.
Features
* Adopting four guide pillar structure, sliding up and down smoothly and high precision;
* It is simple and quick to change the mold and adjust the depth.
* Compared with similar products, the aluminum laminated film of the same quality stretches deeper and more stable.
* Precise mold design, no crow's feet and corners at all corners and surroundings after forming;
* Use light curtain and outer cover to protect, safe to use;
* Using Japanese imported mold material and high-strength chrome steel and alloy aluminum, the surface is treated with environmentally friendly electroplating and baking paint;
* Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
* Easy to operate, safe and reliable, small size;
Specifications
| Model |
Pouch Cell Forming Machine MR-SCK300 |
| Source voltage |
AC 220V/110V, 50/60HZ |
| Power |
100W |
| Warranty |
One year limited warranty with lifetime support |
| Advantages |
1. Structure of guide pin, slide up and down smoothly with high precision
2. Change mould, adjust tensile depth simply, quickly
3. Use screen and casing protection, guarantee safety
4. High strength of chrome steel and aluminum alloy,
surface roasts the paint processing through environmental
protection electroplating
|
|
Suitable aluminum
film thickness
|
0.1-0.2mm |
| Suitable mold size |
300*280mm(L*W), customized,
with punching depth ≤6mm
|
| Max. Cup Depth |
Single pit punching depth ≤6mm |
| Output |
200-400EA/H |
| Output pressure |
3T |
| Air source |
0.5-0.7MPa |
| Mold materials |
SS136 Die steel |
|
Dimension
(L*W*H)
|
460*320*925mm |
| Weight |
About 150kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
