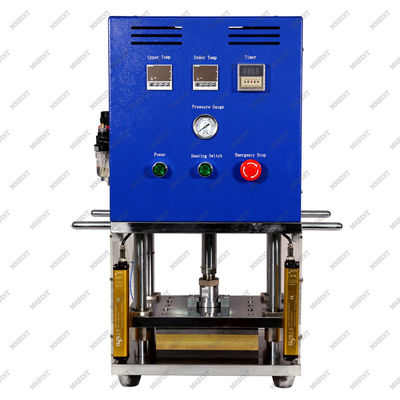

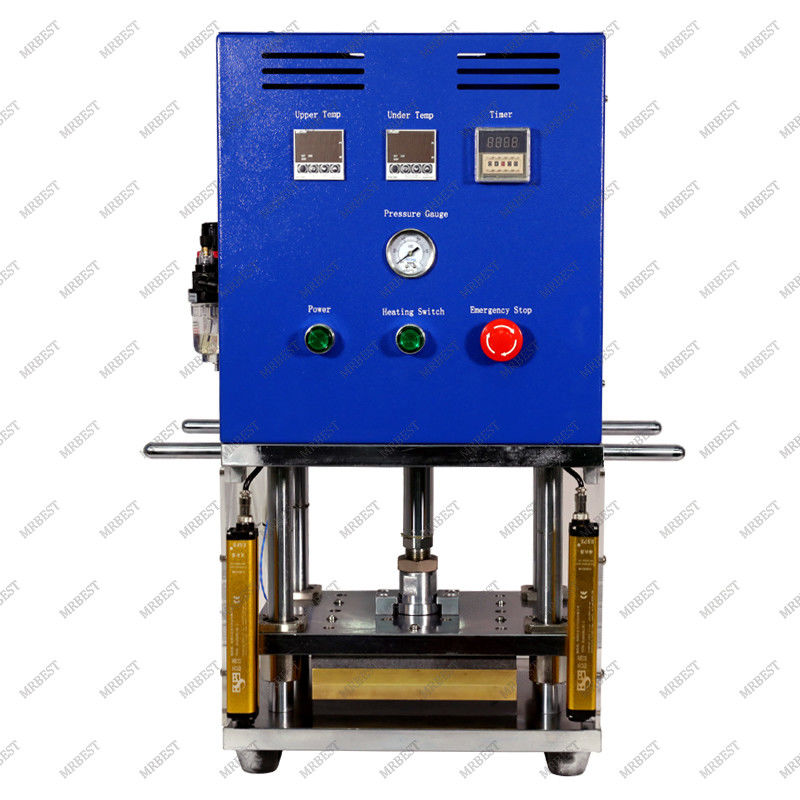

Battery Cells Heat and Cold Press Machine For Battery Making
Model: MR-RY200
MR-RY200 Hot press machine is mainly used for battery cells hot press shaping after winding/stacking process, easy for battery core into the pouch or shell.
Using the hot press shaping machine after battery winding/stacking on the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.
Features:
● Upper and lower pressing die temperature can be controlled independently.
● Heating temperature is adjustable from room temperature to 250℃ and digital display.
● Pressing pressure can be adjusted.
● Heating press time can be set.
● The heating pressing die is made of copper with good heating conduction.
● IR sensor and protection cover included for safety protection.
Specifications
| Model |
Battery Cells Heat and Cold Press Machine MR-RY200 |
| Source Voltage |
AC110V-240V, 50/60HZ |
| Power |
2000W |
| Warranty |
One year limited warranty with lifetime support |
| Structure |
The LCD display shows Temperature
Using light curtain protection device, guarantee security
With abnormal temperature alarm function
Hot-pressing time, temperature, pressure can be adjusted
Use automatic and semi-automatic control, easy to operate
|
| Air source |
0.5-0.8MPa |
| Hot press area |
200*200mm |
| Heating TEM |
RT-250℃, adjustable |
| TEM accuracy |
±2℃ |
| Pressure |
1T adjustable |
| Dimension(L*W*H) |
350*320*550mm |
| Weight |
About 90kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
