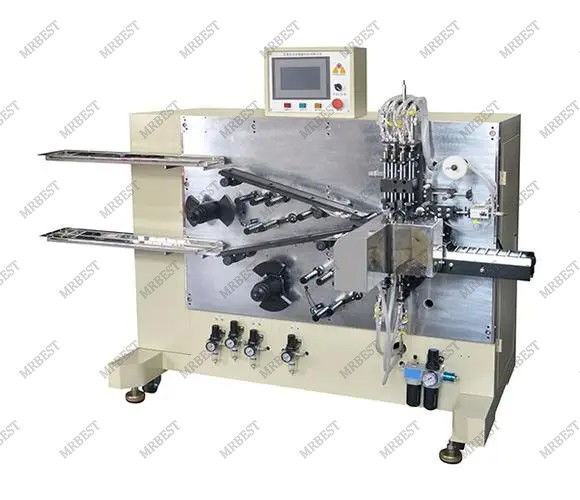

Semi Auto Electrode Battery Winding Machine For Pouch Cell Core Making
Model: MR-BJR100F
It is used for pouch cell winding, manually load the electrodem, the winding will be completed automatically.
Key Features
• Manually loading electrode, the winding, tape pasting, tape cutting will bw finished automatically.
• Separator consistent tension control.
• The adhesive tape is applied longitudinally (the end tape is paeallel to the tab), the adhesive tape is flat, the location of the adhesive tape is flat, the location of the adhesive tape can be precisely controlled without straining the cell.
• Different battery size can be adjusted.
• Winding speed is adjustable.
Technical Parameters
| Model |
Semi Auto Electrode Battery Winding Machine
MR-BJR100F
|
| Voltage |
AC220V, 50Hz |
| Power |
1.5KW |
| Separator width |
16~60mm |
| Electrode width |
23~98mm |
| Winding mode |
Roll-type separator, sheet electrode; Manual laoding electrode automatically winding |
| Winding capacity |
5~10 pcs/min (depending on the battery mode) |
| Winding accuracy |
≤0.05mm |
| Compressed air |
0.4~0.7MPa |
| Dimension |
L1660 * W1300 * H1570mm |
Material Size Requirement:
| Material |
Length (mm) |
Width (mm) |
Thickness (mm) |
ID (mm) |
OD(mm) |
| Cathode electrtode |
180~2000 |
23~98 |
0.1~0.2 |
/ |
/ |
| Anode cathode |
180~2000 |
23~98 |
0.1~0.2 |
/ |
/ |
| Separator |
Roll |
25~100 |
0.016~0.045 |
76.2 |
250 |
| End tape |
Ro;ll; |
8~20 |
0.01~0.035 |
76.2 |
150
|
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
