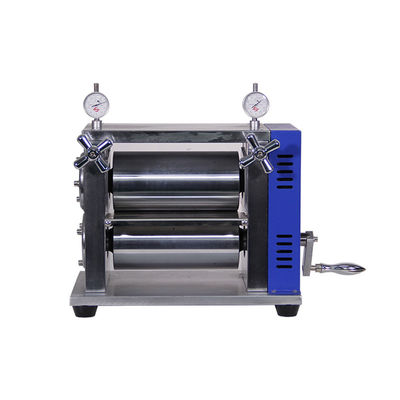

100mm Width Manual Battery Calendering Machine Rolling Press Machine

100mm Width Manual Battery Calendering Machine Rolling Press Machine
100mm Width Manual Battery Calendering Machine Rolling Press Machine

Large Image :  100mm Width Manual Battery Calendering Machine Rolling Press Machine

Product Details:
Place of Origin: China
Brand Name: MRBEST
Certification: CE
Model Number: MR-SG100L
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wooden Packing
Delivery Time: 7-20 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now

100mm Width Manual Battery Calendering Machine Rolling Press Machine

Description
Product Name: Manual Rolling Press Machine Roller Diameter: 96mm
Roller Width: 100mm Other Width Available Pressing Thickness: 0~2mm Adjustable
Rolling Press Accuracy: ≤±0.005 Roller Material: Made From Hardened Tool Steel (HRC > 60) With Cr Electroplated Coating.
With finish: > 0.8 Structure: Heavy Duty Steel Frame, Gears And Handle
Highlight:

Manual Battery Calendering Machine

,

100mm Battery Calendering Machine



100mm Width Manual Rolling Press Machine For Lithium Battery Electrode Calendering



100mm Width Manual Battery Calendering Machine Rolling Press Machine 0



Model: MR-SG100L

  • MR-SG100L Lab Roll Press Machineis a Manual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
  • This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed

Specifications



Model 100mm Width Manual Rolling Press Machine MR-SG100L
Warranty 2 years limited manufacture warranty with lifetime support
Structure

1. Heavy duty steel frame, gears and handle

2. Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60)

with Cr electroplated coating

3. Dual micrometer for accurate thickness adjustment in the range 0 - 2mm Maximum
Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 60)

with Cr electroplated coating. With finish > 0.8

Rolling Press

Accuracy

 ≤±0.005

Rolling Press

Thickness

 0-2mm adjusted with Dial gauge

Rolling Press

Width

 Max 100mm

Product

Dimensions

L350mm*W240mm*H350mm
Weight 45kg



Application

Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use alcohol to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Electrode Size

Original

thickness

Finished

Thickness

LiFePO4

double sides

 50mm W * 260mm L 0.205mm 0.09mm

LiMn2O4

double sides

 50mm W * 260mm L 0.205mm 0.09mm

Copper foil +Graphite

(single side)

 75mm W * 240mm L 0.09mm 0.04mm

Sample testing is available upon customer's request
