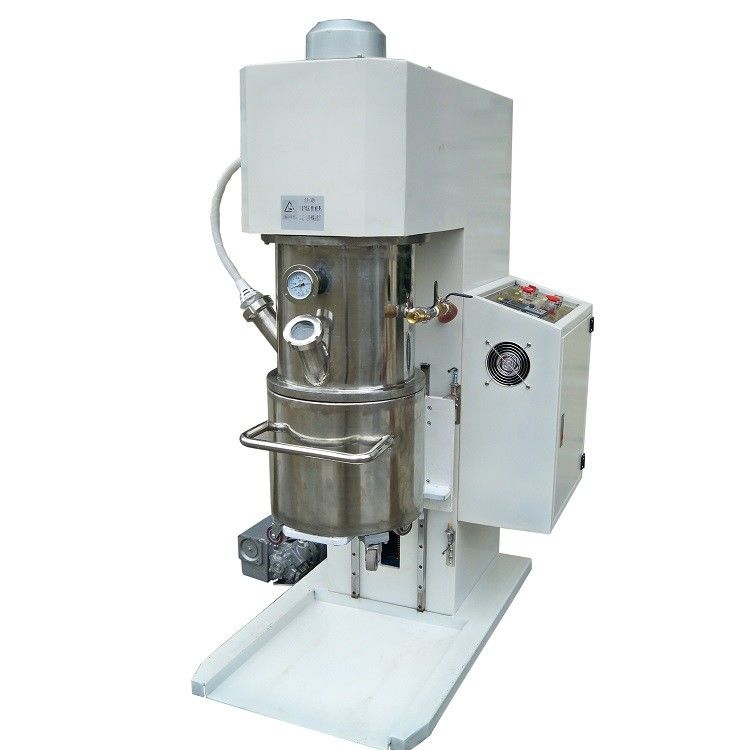

5L Double Planetary Vacuum Mixer Mixing Machine for Lithium Battery Slurry
Model: MR-XJB -7-5L
5L Double Planetary Vacuum Mixer Mixing Machine MR-XJB-7-5L is used for mixing dispersion of various common battery powder and liquid to achieve uniform battery slurry, especially for the high viscosity technological process. The viscosity interval of applicable operating conditions is ≤1200000cP
Features:
* Form of jacket for temperature adjustment, the single-layer jacket for bucket wall is used for cooling or heating; and the single-layer jacket for bucket bottom is used for cooling or heating.
* Over temperature alarm system, safer and smarter.
* Operation failure stop: the frequency converter is self-provided with overload, overcurrent, overvoltage, leakage of electricity, short-phase protection
* Variable cross-section Non-prismatic mixing design can make slurry get better mixing effect.
* Touch screen, simple operation, high automation.
Main Parameters
| Name |
5L Double Planetary Vacuum Mixer Mixing Machine |
| Effective volume |
5L |
|
Lower bucket component
|
Bucket inner diameter |
240mm |
| Bucket inner depth |
180mm |
| Bucket material |
304 stainless steel |
| Form of discharge |
a G1/2’’ Triple-plate discharge ball valve equipped at the bottom of bucket |
|
Mixing component
|
Speed of mixing propeller |
10~98rpm |
| Speed of planetary gearbox |
5~50rpm |
| Pattern of mixing propeller |
Non-prismatic twist type, 90° spiral line |
| Quantity of mixing propeller |
2 pieces |
| Distance between propellers |
7±2mm |
| Distance between propeller and bucket wall |
3mm |
| Distance between propeller and bucket bottom |
3mm |
| Dispersed component |
610~6100 rpm |
|
Wiped-wall component
|
Material of wiped-wall plate |
PTFE |
| Speed of wiping wall |
Consistent with the speed of planetary gearbox |
| Base and lifting component |
Lifting mode |
Electric lifting |
| Lifting travel |
≤290mm |
|
Upper bucket component
|
Feeding hole of power powder |
DN50 equipped with one quick-release sight glass |
| Feeding hole of liquid |
One quick-release ISO 1/2 |
| Spot-light |
One DN50 |
| Vacuum connector |
One G 1/2’’ inner thread |
| Working voltage |
AC 3×380V±5%, 50Hz |
| Total power |
＞4kw |
| Vacuum holding |
-0.0989Mpa, it is higher than -0.085Mpa after 24 hours holding, without leakage to bucket |
| Dimension |
L1463×W610×H1770mm |
| Weight |
700kg
|
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
