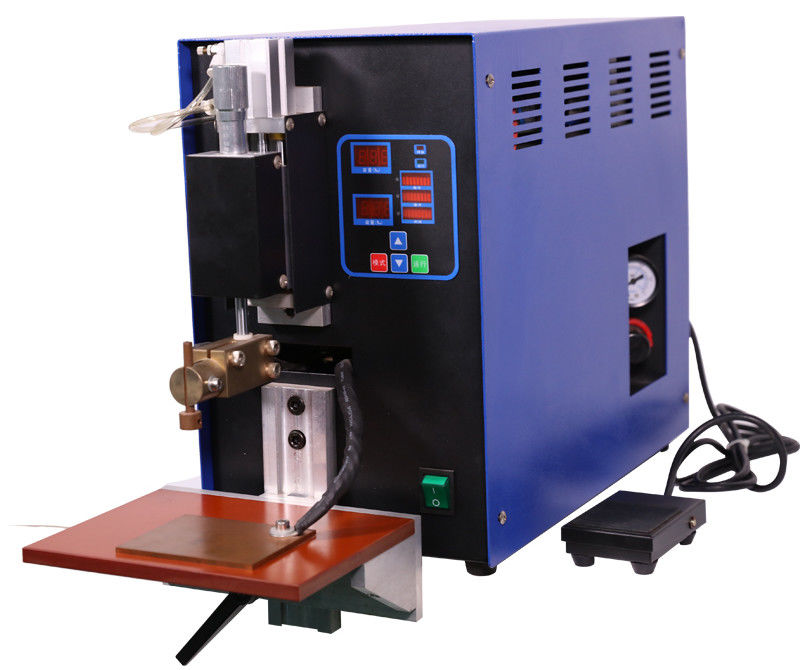

Cylindrical Cell Bottom Spot Welder
Model: MR-DH650
Cylindrical Cell Bottom Spot Welder MR-DH650 is the most popular AC pulse Spot Welder driven by compressed air, which is controlled by microcomputer. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with reliable performance. It is used for the welding of the negative electrode shell and the tab of the cylindrical battery (single-needle welding).
Features:
*The welding current is stable, the solder joint size is uniform, the solder joint is beautiful, the spark is small, and there is no blackening.
* Completely overcome the low pressure and water out of the lithium battery after spot welding, is the ideal equipment for the production of assembled batteries.
* Single-pulse, double-pulse and multi-pulse welding can be realized by microcomputer single-chip control.
* All parameters are digital settings, so the parameter adjustment is intuitive and accurate.
*The welding pin pressure is independently adjusted, and the adjustment is convenient, ensuring stable and reliable welding pressure.
* Alignment welding is accurate, suitable for welding of small cap batteries, and the yield is high.
* The appearance is exquisite and beautiful, and light.
Specifications
| Working Voltage |
110 VAC, 50/60Hz or 220VAC, 50/60Hz |
| Output Power |
10KW |
| Input Air Pressure |
0.1 - 0.7 MPa (Air Compressor is not included) |
| Welding Current |
0-99% Adjustable |
| Tab Thickness Applicable |
0.03 - 0.25 mm tab
Note: the spot welder is not suitable for welding foil ( <20-micron thickness with tab. For the thin foil welding, please consider the ultrasonic welder
|
| Product Dimensions |
L400×W560×H400mm |
| Warranty |
One year limited warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance is not covered by warranty
|
| Accessories |
pedal type welding switch
Air Compressor connect cable
|
| Net Weight |
45kg |
Our Advantages
1. Steady and high quality ! -cause we are a manufacturer of Lithium Battery Equipment, and we only focus on one thing that is make professional Lithium ion Battery Equipment for customer around the world.
2. Friendly use! all MRBEST Battery Equipment with teach manual and support live teaching via media.
3. Reliable factory! My factory located in Shenzhen city of China, support factory visit and video factory visit .
4. 1 year warranty plus lifetime technical support.
5.All the parts use on machine, in stock forever.
6. Powerful technical support, NOT TRADE COMPANY! We are professional on Lithium Battery Equipment, the chief engineer team have
more than 20 years experience on lithium battery area, so we can easy do diagnose on machine if customer have question.
7. 100% PATIENCE to all customers! Our patience not only before consult order, also after-sale service, one by one .
