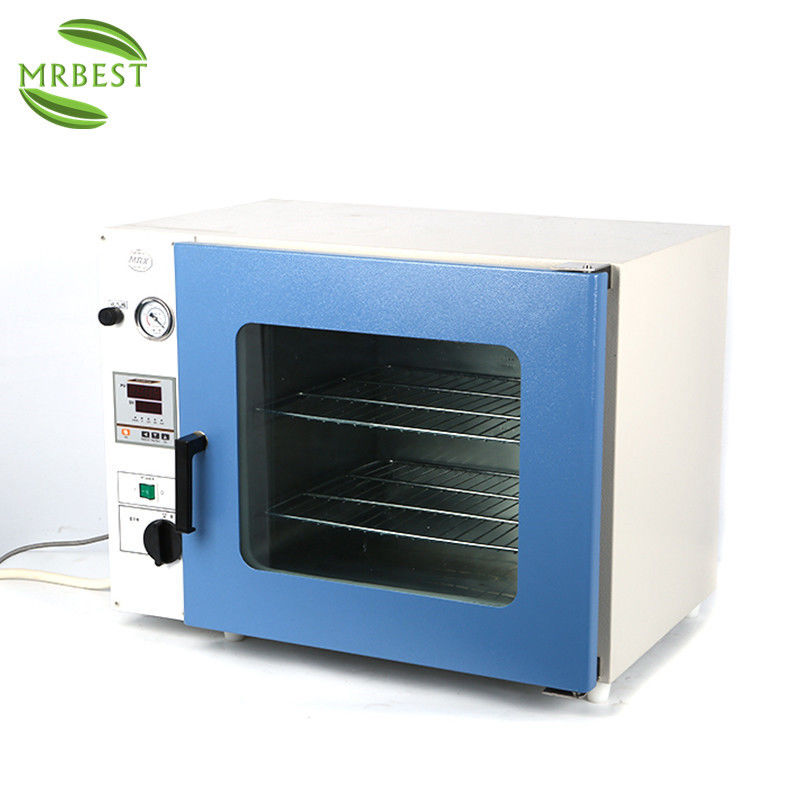

53L Benchtop Lab Vacuum Drying Oven 200°C With Digital Temperature Controller

The chamber is structured with stainless steel and welded to bracing pieces.

The inner Chamber size: 415 mm x 345 mm x 373 mm

(16.3 x 13.6 x 14.7", 50 Liter, 1.88 cubic-foot ) (LxHxD)

A good vacuum sealing is achieved by the silicone gasket and the positive latch door.

The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield.

Two stainless steel shelves are included to facilitate processing efficiency.

An adjustable air/gas filling valve on the left panel is included.

Ultimate Vacuum Level: 700 millitorrs(Using Mechanical Pump).

Ultimate Vacuum Level: 1 millitorrs(Using Turbo Pump).

The vacuum pump is not included. Please order separately.

Double Stage Rotary Vane Vacuum Pump Recommended.

Please select from option:

AC 110 - 120 V 50/60 Hz

AC 220V

RT+10 ~ 200°C is standard,

RT+10 ~ 250°C is optional

Single point temperature setting

Built-in over-temperature protection

PID precise temperature control

Temperature control accuracy: +/-1°C

Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 8"x6.5" area only

One Year Limited Manufacturer Warranty with Life-Time Support

(Note: the silicone door gasket is not covered by warranty)

It's normal that the SS chamber wall will slightly deform and lose its shine during high-temperature operation. However, this would not affect any functionality.

Please do not place the sample on the chamber bottom directly.
