Compact Battery Electrode Slurry Filtration System 500mL Capacity AC110V / 220V

Large Image : Compact Battery Electrode Slurry Filtration System 500mL Capacity AC110V / 220V

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MR-GL-1-500ML
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Compact Battery Electrode Slurry Filtration System 500mL Capacity AC110V / 220V

Description

Name:	Battery Electrode Slurry Filter	Power:	AC110V/220V
Structure:	Made Of SS304	Pump Flow Rate:	3L/min
Absolute Vacuum Level:	65kPa	Capacity:	500ml
Filtration:	3 Filters Included Filtration Pore Sizes: 80mesh & 100mesh & 150mesh	Filter Container Dimensions:	145mm X 150mm X200mm
Highlight:	Battery Electrode Slurry Filtration System , Compact Slurry Filtration System

Coin Cell Machine Compact Filtration System (500mL) for Battery Electrode Slurry

Compact Battery Electrode Slurry Filtration System 500mL Capacity AC110V / 220V 0

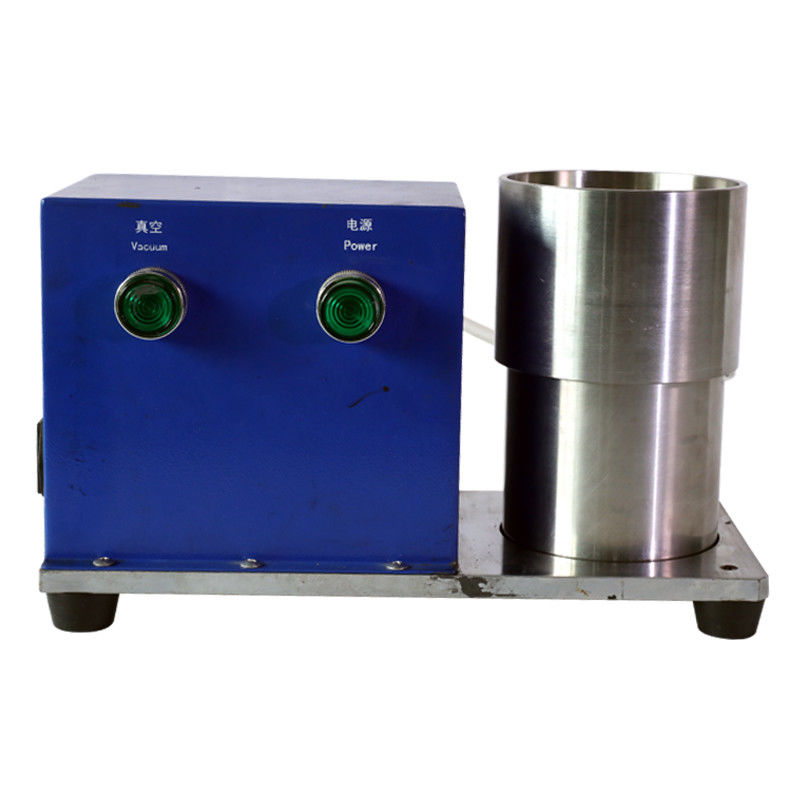

Model:MR-GL-1-500ml

MR-GL-1 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

Main features

* High filtration precision, up to 124 microns, equipped with two kinds of particle filters for filtering positive and negative electrodes.

* All SUS304 stainless steel design, good anti-corrosion performance, easy to clean.

*The filter with larger filter area makes the pressure loss very low, the equipment durable.

* Small size and easy to operate.

* Beautiful appearance, easy maintenance, molding and so on.

Specifications

Power Requirements	Input: 100 - 240V AC; 50/60 Hz Output: DC12V, 0.4A
Structure	Made of SS304
Pump Flow Rate	3L/min
Absolute Vacuum Level	65kPa
Capacity	500ml
Filtration	3 Filters included Filtration Pore Sizes: 80mesh & 100mesh & 150mesh
Filter Container Dimensions	145mm x 150mm x200mm
Air Generator Dimensions	140mm x 70mm x 150mm
Net Weight	4kg
Warranty	One year limited with lifetime support Parts rusted without regular cleaning and maintenance are not covered by the warranty
