AC110V / 220V Planetary Vacuum Mixer For Mixing Battery Electrode Powders

Large Image : AC110V / 220V Planetary Vacuum Mixer For Mixing Battery Electrode Powders

Product Details:

Place of Origin:	China
Brand Name:	MRBEST
Certification:	CE
Model Number:	MR-XJB-4
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Wooden Packing
Delivery Time:	7-20 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

AC110V / 220V Planetary Vacuum Mixer For Mixing Battery Electrode Powders

Description

Name:	Planetary Vacuum Mixer	Power:	AC110V/220V
Mixing Speed:	Max 1400rpm, 3 Segments Programable	Mixing Time:	0~600min
Mixing Container:	500ml As Standard, 150ml & 250ml Is Optional	Vacuum Pump:	Built-in
Dimension:	L330 * W320 * H570mm	Weight:	35KGS
Highlight:	AC110V Planetary Vacuum Mixer , AC220V Planetary Vacuum Mixer

Coin Cell Machine Planetary Vacuum Mixer for Mixing Battery Electrode Powders

AC110V / 220V Planetary Vacuum Mixer For Mixing Battery Electrode Powders 0

Model: MR-XJB-4

Product Introduction

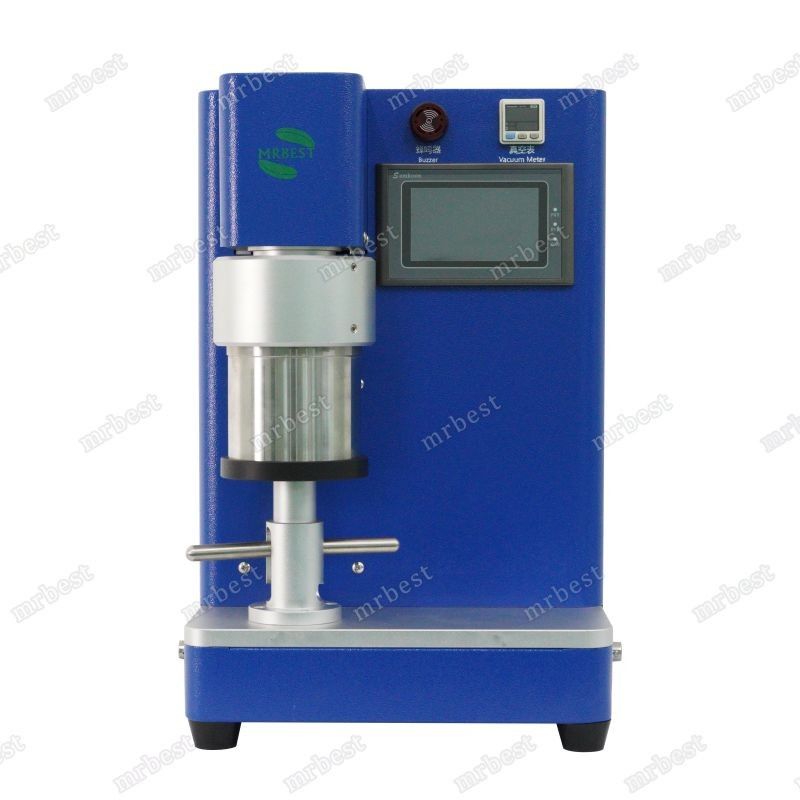

MR-XJB-4 is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 1400 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. MR-XJB-4 is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. (heating container is optional up to 200⁰C)

Specifications

Model	Planetary Vacuum Mixer for Mixing Battery Electrode Powders MR-XJB-4
Voltage	AC 100 – 240 V, frequency: 50/ 60 Hz
Rotary Speed	Max 1400 rpm
Mixing Container	One vacuum sealed stainless steel container is included (optional 150ml, 250ml or 500ml). Mixing blade is built-in to the top of the container. Metal filter prevents solid particles from being sucked into the Vacuum pump
Vacuum Pump	Built-in single stage vacuum pump Vacuum Level: -0.08 Mpa
Control Panel	1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off 2. Mixing Time: 0 - 600 minute 3. Mixing Speed: 0 - 1400 RPM and 3 segments programmable 4. Note: Max. mixing speed depends on slurry viscosity.
Dimensions	330320570mm
Net Weight	35kg
Compliance	CE Certified
Warranty	1 year limited with lifetime technical support
Application Notes	For best result, please consider ordering a filter to remove larger particle in slurry. Recommend Model: MR-GL-1

Standard Package

Item No.	Description	Quantity
MR-XJB-4	Compact Dual-Shaft Planetary Vacuum Mixer	1
Stainless Steel Vacuum Sealed Container	1 stainless steel vacuum sealed container are included (optional 150ml, 250ml or 500ml).	1
