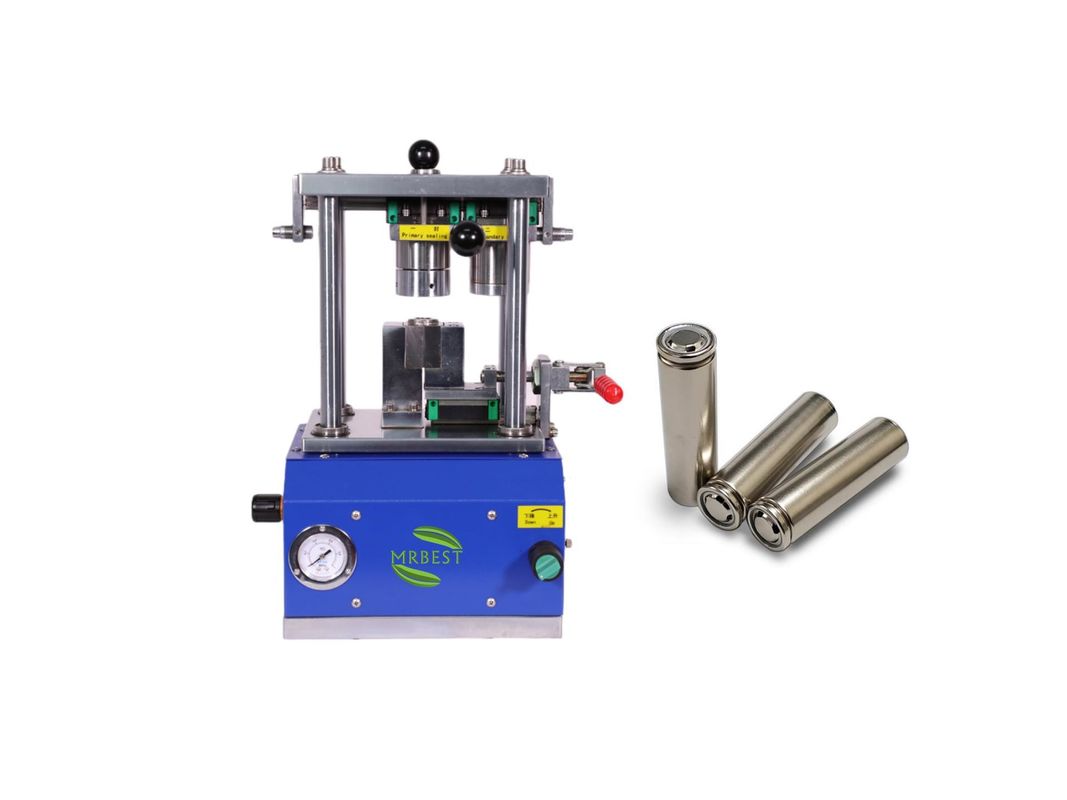

Pneumatic Cylindrical Battery Sealing Machine for 18650, 21700 or 26650. 32650, 32700 Cylindrical Cell
The MR-QF-650 pneumatic cylindrical battery sealing machine is used for various size of cylinder cell and supercapacitor sealing process.(Optional Die 18650, 21700, 26650, 32650, 32700, etc.)
Features:
1. Totally operated by pneumatic. Without any electricity. Very easy to use.

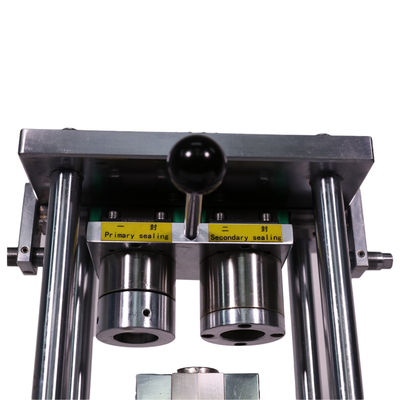

2. Two steps for sealing which make better sealing.
3. Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.
4. Good looking appearance, Simple maintenance, Small size, easy operate and accurate molding.
5. Gas supply by compressed air or Inert gas cylinder. External connection of the compressed gas make sure the atmosphere in the glove box.
Specifications
| Model |
MR-QF650 Cylindrical battery sealing machine |
| Warranty |
One Year limited warranty with lifetime support |
| Gas source |
0.6 ~ 0.8MPa argon, nitrogen cylinders, or compressed air (compressed air is not recommended in the glove box) |
| Exhaust gas design |
specially designed exhaust ports, which can be externally connected through devices such as KF40 |
| Gas consumption |
480ml for single seal |
| Sealing pressure |
manual control valve control, maximum pressure 1 MPA, recommended use pressure 0.7 MPa, accuracy ±0.5% |
| Sealing trip |
30 mm |
| Sealing dies |
Standard 18650 series package dies, it can be selected or matched with other specifications |
| Dimension |
L290mm*W205mm*H330mm |
| Weight |
35Kg |
| Structural material |
1.With the function of preventing the short circuit of the battery seal.
2.high strength chromium steel, the surface after environmental plating and spray treatment will never rust.
|

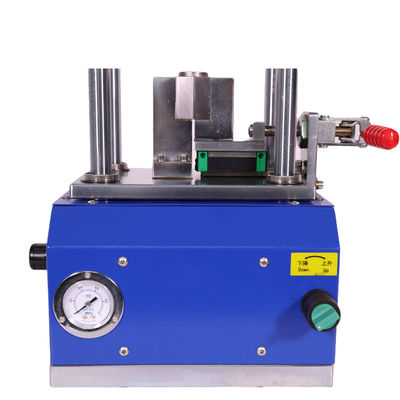

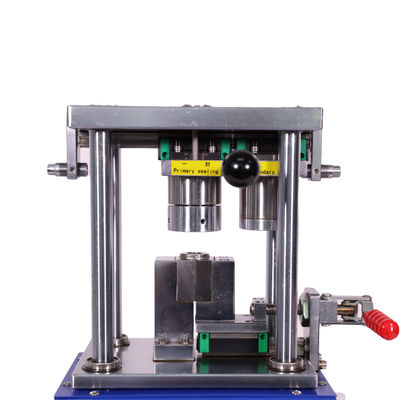

Picture Display

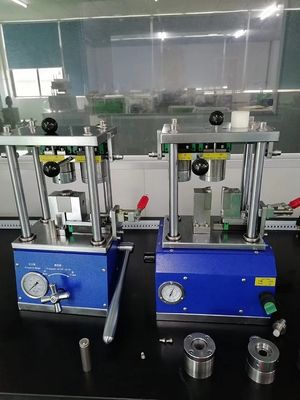

Factory Show
Shenzhen Meirui Zhida Technology Co., Ltd. is a Manufacturer specializing in a Complete Set of Lithium Ion Battery Research Equipment. MRBEST has been committed to providing customers with comprehensive Battery Research and Development Equipment to meet customers' new Lithium Battery Technology and New Needs in recent years, such as Sodium Batteries, Solid-state Battery and Semi-solid-state Battery Equipment, special process requirements such as dry process, 4680 large cylindrical battery equipment requirements etc. Create One-Stop Service for Battery Research Equipment for customers and provide Professional Technical Guidance and Support.
MRBEST related products include: Vacuum Mixers, Planetary Vacuum Mixers, Lab Transfer Coating Machine, Automatic Film Coating Machine, Electric Vertical Roller Machine, Pneumatic Die-cutting Machines, Electric Sealing Machines, Vacuum Pre-sealing machine, Secondary Sacuum Sealing Machine, Coin Cell battery Sealing Machine, Battery Winding Machine, Pouch Cell Sealing Machine, Ultrasonic Spot Welding Machine, Glove Box with Purification System etc. MRBEST products have been sold at home and abroad. Our main customer include: Universities, Research Institutes, Battery Positive and Negative Material Companies, Battery Cell Manufacturers, and New Energy EV Battery Manufacturers etc.
